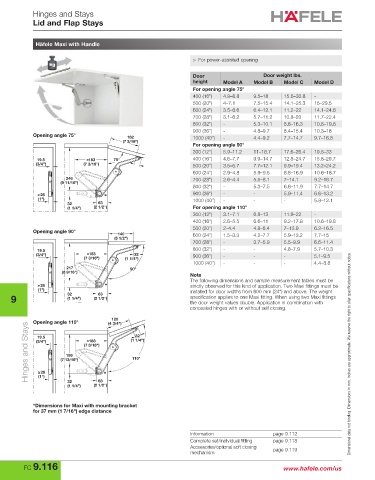

Page 936 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Hinges and Stays
Lid and Flap Stays

Häfele Maxi with Handle

> For power-assisted opening

Door Door weight lbs.
height Model A Model B Model C Model D
For opening angle 75°
400 (16") 4.9–8.8 9.5–18 15.6–30.8 -
500 (20") 4–7.1 7.5–15.4 14.1–25.3 15–29.5
600 (24") 3.5–6.6 6.4–12.1 11.2–22 14.1–24.6
700 (28") 3.1–6.2 5.7–11.2 10.8–20 11.7–22.4
800 (32") - 5.3–10.1 8.8–16.3 10.8–19.8
900 (36") - 4.8–9.7 8.4–15.4 10.3–18
Opening angle 75° 182 1000 (40") - 4.4–9.2 7.7–14.7 9.7–16.8
(7 3/16")
For opening angle 90°
300 (12") 5.9–11.2 11–18.7 17.6–26.4 19.8–33
19.5 183 75° 400 (16") 4.6–7.7 9.9–14.7 12.8–24.7 15.8–29.7
(3/4") (7 3/16") 500 (20") 3.5–5.7 7.7–12.1 9.9–19.4 13.2–24.2
600 (24") 2.9–4.8 5.9–9.5 8.6–16.9 10.6–18.7
246 700 (28") 2.6–4.4 5.5–8.1 7–14.1 9.2–16.7
(9 11/16")
800 (32") - 5.3–7.5 6.6–11.9 7.7–14.7
≥26 900 (36") - - 5.9–11.4 6.6–13.2
(1") 1000 (40") - - - 5.9–12.1
32 63
(1 1/4") (2 1/2") For opening angle 110°
300 (12") 3.1–7.1 6.8–13 11.9–22 -
400 (16") 2.6–5.5 6.6–11 9.2–17.8 10.6–19.8
500 (20") 2–4.4 4.8–8.4 7–13.9 6.2–16.5
Opening angle 90°
140 600 (24") 1.5–3.3 4.2–7.7 5.9–13.2 7.7–15
(5 1/2")
700 (28") - 3.7–5.9 5.5–9.9 6.6–11.4
19.5 800 (32") - - 4.8–7.9 5.7–10.3
(3/4") 183 32 900 (36") - - - 5.1–9.5
(7 3/16") (1 1/4")
1000 (40") - - - 4.4–8.8
217 90°
(8 9/16")
Note
The following dimensions and sample measurement tables must be
≥26 strictly observed for this kind of application. Two Maxi fittings must be
(1") installed for door widths from 600 mm (24") and above. The weight
63
9 32 (2 1/2") specification applies to one Maxi fitting. When using two Maxi fittings
(1 1/4")
the door weight values double. Application in combination with
concealed hinges with or without self closing.
120
Opening angle 110° (4 3/4") 32
Hinges and Stays (3/4") (7 13/16") (7 3/16") (1 1/4") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
19.5
183
199
110°
≥26
(1")
63
32
(1 1/4") (2 1/2")

*Dimensions for Maxi with mounting bracket
for 37 mm (1 7/16") edge distance

Information page 9.112
Complete set/individual fitting page 9.118
Accessories/optional soft closing page 9.119
mechanism
FC 9.116 www.hafele.com/us
