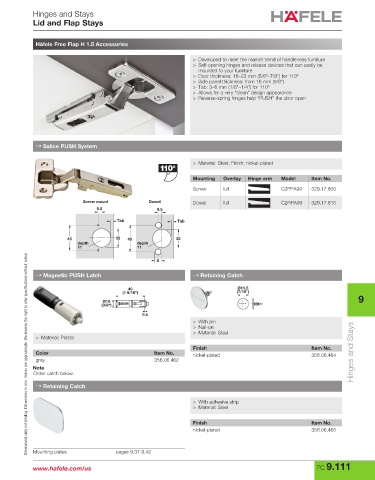

Hinges and Stays
Lid and Flap Stays

Häfele Free Flap H 1.5 Accessories

> Developed to meet the market trend of handle-less furniture
> Self-opening hinges and release devices that can easily be
mounted to your furniture
> Door thickness: 16–23 mm (5/8"–7/8") for 110º
> Side panel thickness: from 16 mm (5/8")
> Tab: 3–6 mm (1/8"–1/4") for 110º
> Allows for a very “clean” design appearance
> Reverse-spring hinges help “PUSH” the door open

→ Salice PUSH System

> Material: Steel; Finish: nickel-plated

Mounting Overlay Hinge arm Model Item No.
Screw full C2PPA99 329.17.800

Screw mount Dowel Dowel full C2RPA99 329.17.810
9.5 9.5
Tab Tab

45 35 45 35
depth depth
11 11
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8
→ Magnetic PUSH Latch → Retaining Catch

40 Ø11.5 40 Ø11.5
(1 9/16") (7/16") (1 9/16") (7/16")
Ø10 Ø10 9
(3/8") (3/8")
0.5 0.5
> With pin
> Nail-on
> Material: Steel
> Material: Plastic
Finish Item No.
Color Item No. nickel-plated 356.06.464 Hinges and Stays
gray 356.06.462
Note
Order catch below.
→ Retaining Catch

> With adhesive strip
> Material: Steel

Finish Item No.
nickel-plated 356.06.465

Mounting plates pages 9.37-9.42
