Hinges and Stays
Lid and Flap Stays

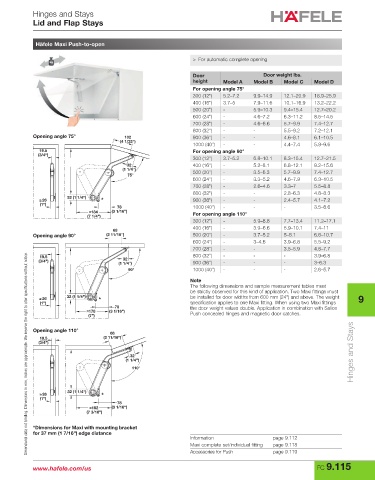

Häfele Maxi Push-to-open

> For automatic complete opening

Door Door weight lbs.
height Model A Model B Model C Model D
For opening angle 75°
300 (12") 5.2–7.2 9.9–14.9 12.1–20.9 18.9–25.9
400 (16") 3.7–5 7.9–11.6 10.1–16.9 13.2–22.2
500 (20") - 5.9–10.3 9.4–15.4 12.7–20.2
600 (24") - 4.6–7.2 6.3–11.2 8.5–14.5
700 (28") - 4.6–6.6 5.7–9.9 7.4–12.7
800 (32") - - 5.5–9.2 7.2–12.1
Opening angle 75° 102 900 (36") - - 4.6–8.1 6.1–10.5
(4 1/32")
1000 (40") - - 4.4–7.4 5.9–9.6
19.5 For opening angle 90°
(3/4")
300 (12") 3.7–5.2 6.8–10.1 8.3–15.4 12.7–21.5
32 400 (16") - 5.2–8.1 6.8–12.1 9.2–15.6
(1 1/4") 500 (20") - 3.5–6.3 5.7–9.9 7.4–12.7
75°
600 (24") - 3.3–5.2 4.6–7.9 6.3–10.5
700 (28") - 2.6–4.6 3.3–7 5.5–8.8
800 (32") - - 2.8–6.3 4.8–8.3
32 (1 1/4")
≥26 900 (36") - - 2.4–5.7 4.1–7.2
(1")
78 1000 (40") - - - 3.5–6.6
184 (3 1/16") For opening angle 110°
(7 1/4")
300 (12") - 5.9–8.8 7.7–13.4 11.2–17.1
400 (16") - 3.9–6.6 5.9–10.1 7.4–11
68
Opening angle 90° (2 11/16") 500 (20") - 3.7–5.2 5–8.1 6.6–10.7
600 (24") - 3–4.6 3.9–6.8 5.5–9.2
700 (28") - - 3.5–5.9 4.8–7.7
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
19.5 800 (32") - - - 3.9–6.8
(3/4") 32 900 (36") - - - 3–6.3
(1 1/4")
90° 1000 (40") - - - 2.6–5.7
Note
The following dimensions and sample measurement tables must
be strictly observed for this kind of application. Two Maxi fittings must
≥26 32 (1 1/4") be installed for door widths from 600 mm (24") and above. The weight 9
(1") specification applies to one Maxi fitting. When using two Maxi fittings
78 the door weight values double. Application in combination with Salice
178 (3 1/16") Push concealed hinges and magnetic door catches.
(7")
Hinges and Stays
Opening angle 110° 68
19.5 (2 11/16")
(3/4")

32
(1 1/4")
110°

32 (1 1/4")
≥26
(1")
78
182 (3 1/16")
(7 3/16")
*Dimensions for Maxi with mounting bracket
for 37 mm (1 7/16") edge distance
Information page 9.112
Maxi complete set/individual fitting page 9.118
Accessories for Push page 9.119

www.hafele.com/us FC 9.115
