Hinges and Stays
Lid and Flap Stays

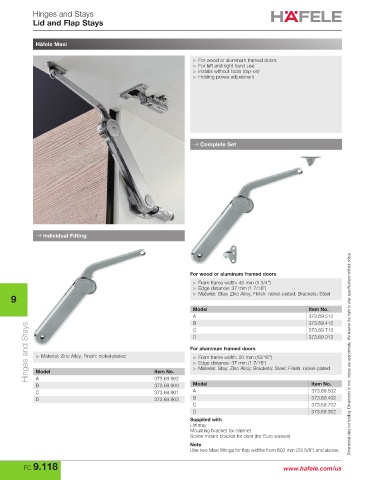

Häfele Maxi

> For wood or aluminum framed doors
> For left and right hand use
> Installs without tools (clip-on)
> Holding power adjustment

→ Complete Set

→ Individual Fitting

For wood or aluminum framed doors
> From frame width: 45 mm (1 3/4")
> Edge distance: 37 mm (1 7/16")
9 > Material: Stay: Zinc Alloy, Finish: nickel-plated; Brackets: Steel
Model Item No.
A 373.69.512
373.69.412
B
Hinges and Stays > Material: Zinc Alloy; Finish: nickel-plated For aluminum framed doors 373.69.312 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
373.69.712
C
D
> From frame width: 20 mm (13/16")
> Edge distance: 37 mm (1 7/16")
> Material: Stay: Zinc Alloy; Brackets: Steel; Finish: nickel-plated
Model
373.69.902
A
B Item No. Model Item No.
373.69.900
C 373.69.901 A 373.69.502
D 373.69.903 B 373.69.402
C 373.69.702
D 373.69.302
Supplied with
Lid stay
Mounting bracket for cabinet
Screw mount bracket for door (for Euro screws)
Note
Use two Maxi fittings for flap widths from 600 mm (23 5/8") and above.

FC 9.1189.118 www.hafele.com/us
