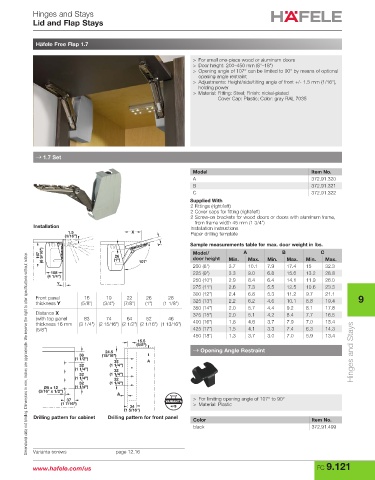

Hinges and Stays
Lid and Flap Stays

Häfele Free Flap 1.7

> For small one-piece wood or aluminum doors
> Door height: 200–450 mm (8"–18")
> Opening angle of 107° can be limited to 90° by means of optional
opening angle restraint
> Adjustments: Height/side/tilting angle of front +/- 1.5 mm (1/16"),
holding power
> Material: Fitting: Steel; Finish: nickel-plated
Cover Cap: Plastic; Color: gray RAL 7035

→ 1.7 Set

Model Item No.
A 372.91.320
B 372.91.321
C 372.91.322
Supplied With
2 Fittings (right/left)
2 Cover caps for fitting (right/left)
2 Screw-on brackets for wood doors or doors with aluminum frame,
from frame width 45 mm (1 3/4")
Installation Installation instructions
1.5 Paper drilling template
(1/16")
Sample measurements table for max. door weight in lbs.
(6 9/16") Model/ A B C
167 (1") door height Min. Max. Min. Max. Min. Max.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
26
107°
200 (8") 3.7 10.1 7.9 17.4 15 32.3
108 225 (9") 3.3 9.0 6.8 15.6 13.2 28.8
(4 1/4")
250 (10") 2.9 8.4 6.4 14.1 11.9 26.0
275 (11") 2.6 7.3 5.5 12.5 10.6 23.3
300 (12") 2.4 6.8 5.3 11.2 9.7 21.1
Front panel 16 19 22 26 28 9
thickness Y (5/8") (3/4") (7/8") (1") (1 1/8") 325 (13") 2.2 6.2 4.6 10.1 8.8 19.4
350 (14") 2.0 5.7 4.4 9.2 8.1 17.8
Distance X 375 (15") 2.0 5.1 4.2 8.4 7.7 16.5
(with top panel 83 74 64 52 46
thickness 16 mm (3 1/4") (2 15/16") (2 1/2") (2 1/16") (1 13/16") 400 (16") 1.8 4.6 3.7 7.9 7.0 15.4
(5/8") 425 (17") 1.5 4.1 3.3 7.4 6.3 14.3
450 (18") 1.3 3.7 3.0 7.0 5.9 13.4
15.5
(5/8")
24.5 → Opening Angle Restraint Hinges and Stays
38 (15/16")
(1 1/2") 32
32 (1 1/4")
(1 1/4") 32
32 (1 1/4")
(1 1/4") 32
32 (1 1/4")
Ø5 x 12 (1 1/4")
(3/16" x 1/2")
37 VARIANTA > For limiting opening angle of 107° to 90°
(1 7/16") 34 5 > Material: Plastic
(1 5/16")
Drilling pattern for cabinet Drilling pattern for front panel
Color Item No.
black 372.91.499

Varianta screws page 12.16

www.hafele.com/us FC 9.121
