Hinges and Stays
Lid and Flap Stays

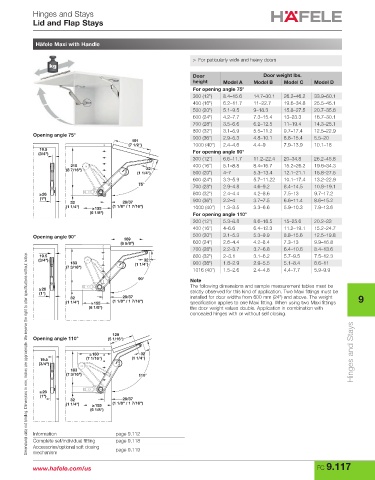

Häfele Maxi with Handle

> For paticularly wide and heavy doors

Door Door weight lbs.
height Model A Model B Model C Model D
For opening angle 75°
300 (12") 8.4–15.6 14.7–30.1 26.2–46.2 33.9–60.1
400 (16") 6.2–11.7 11–22.7 19.6–34.8 25.5–45.1
500 (20") 5.1–9.5 9–18.3 15.8–27.5 20.7–35.6
600 (24") 4.2–7.7 7.3–15.4 13–23.3 16.7–30.1
700 (28") 3.5–6.6 6.2–12.5 11–19.4 14.3–25.1
800 (32") 3.1–5.9 5.5–11.2 9.7–17.4 12.5–22.9
Opening angle 75° 900 (36") 2.9–5.3 4.8–10.1 8.8–15.4 5.5–20
191
(7 1/2") 1000 (40") 2.4–4.6 4.4–9 7.9–13.9 10.1–18
19.5 For opening angle 90°
(3/4")
300 (12") 6.6–11.7 11.2–22.4 20–34.8 26.2–45.8
215 400 (16") 5.1–8.8 8.4–16.7 15.2–26.2 19.6–34.3
(8 7/16") 32
(1 1/4") 500 (20") 4–7 5.3–13.4 12.1–21.1 15.8–27.5
600 (24") 3.3–5.9 5.7–11.22 10.1–17.4 13.2–22.9
75° 700 (28") 2.9–4.8 4.6–9.2 8.4–14.5 10.8–19.1
≥26 800 (32") 2.4–4.4 4.2–8.6 7.5–13 9.7–17.2
(1") 900 (36") 2.2–4 3.7–7.5 6.6–11.4 8.6–15.2
32 28/37
(1 1/4") ≥155 (1 1/8" / 1 7/16") 1000 (40") 1.3–3.5 3.3–6.6 5.9–10.3 7.9–13.6
(6 1/8") For opening angle 110°
300 (12") 5.3–8.8 8.6–16.5 15–25.6 20.2–33
400 (16") 4–6.6 6.4–12.3 11.2–19.1 15.2–24.7
Opening angle 90° 169 500 (20") 3.1–5.3 5.3–9.9 8.8–15.6 12.5–19.8
(6 5/8") 600 (24") 2.6–4.4 4.2–8.4 7.3–13 9.9–16.8
700 (28") 2.2–3.7 3.7–6.8 6.4–10.6 8.4–13.6
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
19.5 800 (32") 2–3.1 3.1–6.2 5.7–9.5 7.5–12.3
(3/4") 32
183 (1 1/4") 900 (36") 1.8–2.9 2.9–5.5 5.1–8.4 6.6–11
(7 3/16")
1016 (40") 1.5–2.6 2.4–4.8 4.4–7.7 5.9–9.9
90° Note
The following dimensions and sample measurement tables must be
≥26 strictly observed for this kind of application. Two Maxi fittings must be
(1")
32 28/37 installed for door widths from 600 mm (24") and above. The weight 9
(1 1/4") ≥155 (1 1/8" / 1 7/16") specification applies to one Maxi fitting. When using two Maxi fittings
(6 1/8") the door weight values double. Application in combination with
concealed hinges with or without self closing.

129
Opening angle 110° (5 1/16")

≥180 32 Hinges and Stays
19.5 (7 1/16") (1 1/4")
(3/4")
183
(7 3/16") 110°

≥26
(1")
32 28/37
(1 1/4") ≥155 (1 1/8" / 1 7/16")
(6 1/8")

Information page 9.112
Complete set/individual fitting page 9.118
Accessories/optional soft closing page 9.119
mechanism

www.hafele.com/us FC 9.117
