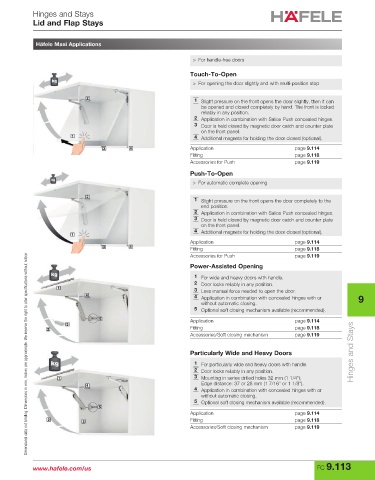

P. 933
Hinges and Stays
Lid and Flap Stays
Häfele Maxi Applications
> For handle-free doors
Touch-To-Open
> For opening the door slightly and with multi-position stop
1 Slight pressure on the front opens the door slightly, then it can
be opened and closed completely by hand. The front is locked
reliably in any position.
2 Application in combination with Salice Push concealed hinges.
3 Door is held closed by magnetic door catch and counter plate
on the front panel.
4 Additional magnets for holding the door closed (optional).
Application page 9.114
Fitting page 9.118
Accessories for Push page 9.119
Push-To-Open
> For automatic complete opening
1 Slight pressure on the front opens the door completely to the
end position.
2 Application in combination with Salice Push concealed hinges.
3 Door is held closed by magnetic door catch and counter plate
on the front panel.
4 Additional magnets for holding the door closed (optional).
Application page 9.114
Fitting page 9.118
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Accessories for Push page 9.119
Power-Assisted Opening
1 For wide and heavy doors with handle.
2 Door locks reliably in any position.
3 Less manual force needed to open the door.
4 Application in combination with concealed hinges with or 9
without automatic closing.
5 Optional soft closing mechanism available (recommended).
Application page 9.114
Fitting page 9.118
Accessories/Soft closing mechanism page 9.119
Particularly Wide and Heavy Doors Hinges and Stays
1 For particularly wide and heavy doors with handle.
2 Door locks reliably in any position.
3 Mounting in series drilled holes 32 mm (1 1/4");
Edge distance: 37 or 28 mm (1 7/16" or 1 1/8").
4 Application in combination with concealed hinges with or
without automatic closing.
5 Optional soft closing mechanism available (recommended).
Application page 9.114
Fitting page 9.118
Accessories/Soft closing mechanism page 9.119
www.hafele.com/us FC 9.113
