Hinges and Stays
Lid and Flap Stays

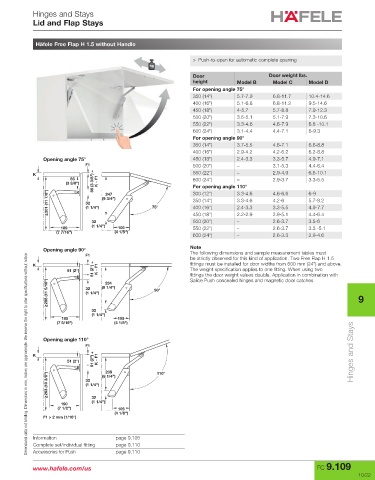

Häfele Free Flap H 1.5 without Handle

> Push-to-open for automatic complete opening

Door Door weight lbs.
height Model B Model C Model D
For opening angle 75°
350 (14") 5.7-7.9 6.8-11.7 10.4-14.6
400 (16") 5.1-6.8 6.8-11.2 9.5-14.6
450 (18") 4-5.7 5.7-8.8 7.9-12.3
500 (20") 3.5-5.1 5.1-7.9 7.3-10.6
550 (22") 3.3-4.6 4.6-7.9 6.8 -10.1
600 (24") 3.1-4.4 4.4-7.1 6-9.3
For opening angle 90°
350 (14") 3.7-5.5 4.6-7.1 6.6-8.8
400 (16") 2.9-4.2 4.2-6.2 6.2-8.8
Opening angle 75° 450 (18") 2.4-3.3 3.3-5.7 4.9-7.1
F1 500 (20") – 3.1-5.3 4.4-6.4
K 550 (22") – 2.9-4.9 6.6-10.1
85 600 (24") – 2.9-3.7 3.3-5.5
(3 3/8") 85 (3 3/8") + K - F1 For opening angle 110°
301 (11 7/8") 32 (9 3/4") 75° 300 (12") 3.3-4.6 4.6-6.6 6-9
247
5.7-8.2
3.3-4.6
350 (14")
4.2-6
4.9-7.7
400 (16")
3.3-5.5
2.4-3.3
(1 1/4")
450 (18") 2.2-2.9 2.9-5.1 4.4-6.4
32 500 (20") – 2.6-3.7 3.5-6
189 (1 1/4") 105 550 (22") – 2.6-3.7 3.3 -5.1
(7 7/16") (4 1/8")
600 (24") – 2.6-3.3 2.9-4.6
Opening angle 90° Note
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
F1 The following dimensions and sample measurement tables must
be strictly observed for this kind of application. Two Free Flap H 1.5
K fittings must be installed for door widths from 600 mm (24") and above.
51 (2") 51 (2") + K - F1 The weight specification applies to one fitting. When using two
fittings the door weight values double. Application in combination with
Salice Push concealed hinges and magnetic door catches.
288 (11 5/16") 32 (9 1/4") 90° 9
234
(1 1/4")
32
(1 1/4")
185 105
(7 5/16") (4 1/8")
Opening angle 110°
F1
K Hinges and Stays
51 (2") 51 (2") + K - F1
209 110°
263 (10 3/8") 32
(8 1/4")
(1 1/4")
32
190 (1 1/4")
(7 1/2") 105
(4 1/8")
F1 > 2 mm (1/16")

Information page 9.105
Complete set/individual fitting page 9.110
Accessories for Push page 9.110
