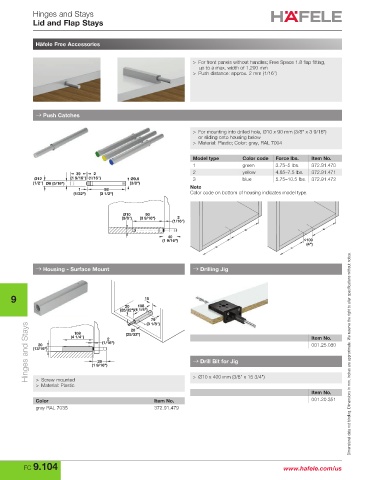

Hinges and Stays
Lid and Flap Stays

Häfele Free Accessories

> For front panels without handles; Free Space 1.8 flap fitting,
up to a max. width of 1.200 mm
> Push distance: approx. 2 mm (1/16")

→ Push Catches

> For mounting into drilled hole, Ø10 x 90 mm (3/8" x 3 9/16")
or sliding onto housing below
> Material: Plastic; Color: gray, RAL 7004

108 Model type Color code Force lbs. Item No.
(4 1/4") 2 1 green 3.75–5 lbs. 372.91.470
20 (1/16")
39 2 (13/16") 2 yellow 4.85–7.5 lbs. 372.91.471
Ø12 (1 9/16") (1/16") Ø9.9 3 blue 5.75–10.5 lbs. 372.91.472
(1/2") Ø8 (5/16") (3/8") 39
1 88 (1 9/16") Note
(1/32") (3 1/2") Color code on bottom of housing indicates model type.

Ø10 90
(3/8") (3 9/16") 2
(1/16")

40
(1 9/16") 100
(4")

→ Housing - Surface Mount → Drilling Jig

9
20 108
(25/32")(4 1/4")
79
(3 1/8")
Hinges and Stays (13/16") (4 1/4") (1 9/16") 2 → Drill Bit for Jig Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
20
108
(25/32")
(1/16")
001.25.080
20
39

> Screw mounted
> Material: Plastic > Ø10 x 400 mm (3/8" x 15 3/4")
Ø10 90
(3/8") (3 9/16") 2 Item No.
(1/16")
Color Item No. 001.20.351
gray RAL 7035 372.91.479
40
(1 9/16")

FC 9.104 www.hafele.com/us
