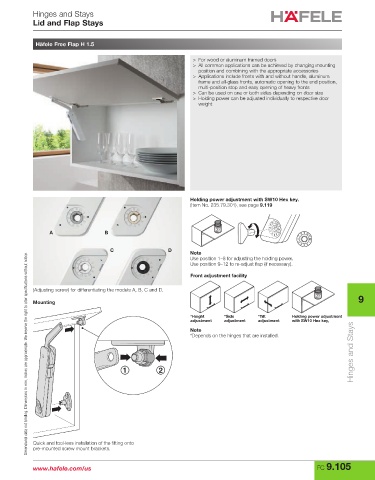

Page 925 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Hinges and Stays
Lid and Flap Stays

Häfele Free Flap H 1.5

> For wood or aluminum framed doors
> All common applications can be achieved by changing mounting
position and combining with the appropriate accessories
> Applications include fronts with and without handle, aluminum
frame and all-glass fronts, automatic opening to the end position,
multi-position stop and easy opening of heavy fronts
> Can be used on one or both sides depending on door size
> Holding power can be adjusted individually to respective door
weight

Holding power adjustment with SW10 Hex key.
(Item No. 235.79.301), see page 9.119

A B

C D
Note
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Use position 1–8 for adjusting the holding power.
Use position 9–12 to re-adjust fl ap (if necessary).
Front adjustment facility
(Adjusting screw) for differentiating the models A, B, C and D.
9
Mounting

*Height *Side *Tilt Holding power adjustment
adjustment adjustment adjustment with SW10 Hex key,
Hinges and Stays
see page 9.124
Note
*Depends on the hinges that are installed.

Quick and tool-less installation of the fi tting onto
pre-mounted screw mount brackets.

www.hafele.com/us FC 9.105
