Hinges and Stays
Lid and Flap Stays

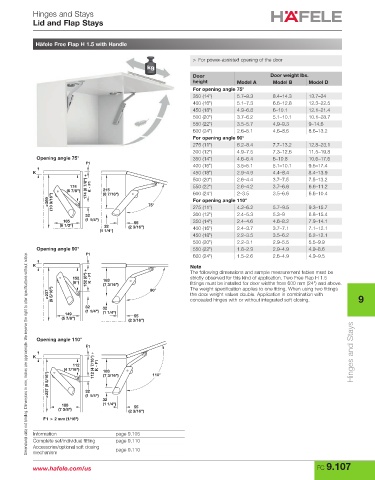

Häfele Free Flap H 1.5 with Handle

> For power-assisted opening of the door

Door Door weight lbs.
height Model A Model B Model D
For opening angle 75°
350 (14") 5.7–9.3 8.4–14.3 13.7–24
400 (16") 5.1–7.3 6.6–12.8 12.3–22.5
450 (18") 4.9–6.8 6–10.1 12.1–21.4
500 (20") 3.7–6.2 5.1–10.1 10.1–28.7
550 (22") 3.5–5.7 4.9–9.3 9–14.6
600 (24") 2.6–5.1 4.6–8.6 8.6–13.2
For opening angle 90°
275 (11") 6.2–8.4 7.7–13.2 12.8–23.1
300 (12") 4.9–7.5 7.3–12.6 11.5–19.8
Opening angle 75° 350 (14") 4.6–6.4 6–10.8 10.6–17.6
F1
400 (16") 3.5–5.1 5.1–10.1 9.5–17.4
K 450 (18") 2.9–4.9 4.4–8.4 8.4–13.9
2.6–4.4
3.7–7.5
7.5–13.2
500 (20")
174 174 (6 7/8") + K - F1 550 (22") 2.6–4.2 3.7–6.6 6.6–11.2
(6 7/8") 215 600 (24") 2–3.5 3.5–6.6 6.6–10.4
(8 7/16")
≥269 (10 9/16") 75° For opening angle 110° 5.7–9.5 9.3–15.7
275 (11")
4.2–6.2
32 300 (12") 2.4–5.3 5.3–9 8.8–15.4
165 (1 1/4") 55 350 (14") 2.4–4.6 4.6–8.2 7.9–14.1
(6 1/2") 32 (2 3/16") 400 (16") 2.4–3.7 3.7–7.1 7.1–12.1
(1 1/4")
450 (18") 2.2–3.5 3.5–6.2 6.2–12.1
500 (20") 2.2–3.1 2.9–5.5 5.5–9.9
Opening angle 90° 550 (22") 1.8–2.9 2.9–4.9 4.9–8.6
F1 600 (24") 1.5–2.6 2.6–4.9 4.9–9.5
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
K Note
strictly observed for this kind of application. Two Free Flap H 1.5
152 152 (6") + K - F1 183 The following dimensions and sample measurement tables must be
(6") (7 3/16") fittings must be installed for door widths from 600 mm (24") and above.
≥237 (9 5/16") 90° The weight specification applies to one fitting. When using two fittings 9
the door weight values double. Application in combination with
concealed hinges with or without integrated soft closing.
32 32
(1 1/4")
149 (1 1/4")
(5 7/8") 55
(2 3/16")

Opening angle 110°
F1
K Hinges and Stays
112 112 (4 7/16") + K - F1
(4 7/16") 183 110°
≥237 (9 5/16") 32
(7 3/16")

(1 1/4")
32
188 (1 1/4") 55
(7 3/8") (2 3/16")
F1 > 2 mm (1/16")

Information page 9.105
Complete set/individual fitting page 9.110
Accessories/optional soft closing page 9.110
mechanism
