Hinges and Stays
Lid and Flap Stays

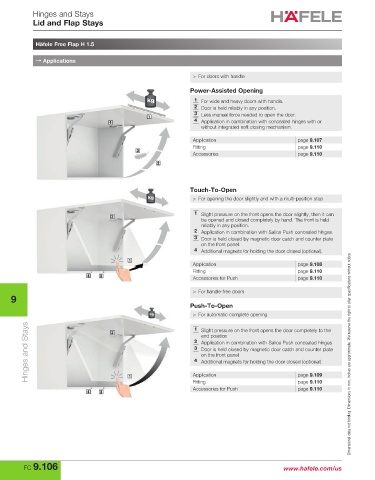

Häfele Free Flap H 1.5

→ Applications

> For doors with handle

Power-Assisted Opening
1 For wide and heavy doors with handle.
2 Door is held reliably in any position.
3 Less manual force needed to open the door.
4 Application in combination with concealed hinges with or
without integrated soft closing mechanism.

Application page 9.107
Fitting page 9.110
Accessories page 9.110

Touch-To-Open
> For opening the door slightly and with a multi-position stop

1 Slight pressure on the front opens the door slightly, then it can
be opened and closed completely by hand. The front is held
reliably in any position.
2 Application in combination with Salice Push concealed hinges.
3 Door is held closed by magnetic door catch and counter plate
on the front panel.
4 Additional magnets for holding the door closed (optional).

Application page 9.108
Fitting page 9.110
Accessories for Push page 9.110

> For handle-free doors
9
Push-To-Open
> For automatic complete opening
Hinges and Stays 2 Application in combination with Salice Push concealed hinges Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
1
Slight pressure on the front opens the door completely to the
end position
3
Door is held closed by magnetic door catch and counter plate
on the front panel
4
Additional magnets for holding the door closed (optional)
Application
page 9.110
Fitting
page 9.110
Accessories for Push page 9.109

FC 9.106 www.hafele.com/us
