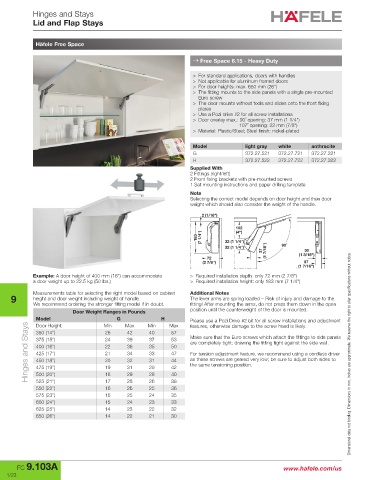

Page 922 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Hinges and Stays
Lid and Flap Stays

Häfele Free Space

→ Free Space 6.15 - Heavy Duty

> For standard applications, doors with handles
> Not applicable for aluminum framed doors
> For door heights: max. 650 mm (26”)
> The fitting mounts to the side panels with a single pre-mounted
Euro screw
> The door mounts without tools and slides onto the front fixing
plates
> Use a Pozi drive #2 for all screw installations
> Door overlay max.: 90˚ opening: 37 mm (1 1/4")
107˚ opening: 22 mm (7/8")
> Material: Plastic/Steel; Steel finish: nickel-plated

Model light gray white anthracite
G 372.27.521 372.27.721 372.27.321
H 372.27.522 372.27.722 372.27.322
Supplied With
2 Fittings (right/left)
lb 2 Front fixing brackets with pre-mounted screws
1 Set mounting instructions and paper drilling template
Note
Selecting the correct model depends on door height and then door
weight which should also consider the weight of the handle.
2 (1/16")

102
(4")
183 (7 1/4") 32 (1 1/4")
32 (1 1/4") 90˚
37 (1 7/16") 30
72 (1 3/16")
(2 7/8") 37
(1 7/16")
Example: A door height of 400 mm (16") can accommodate > Required installation depth: only 72 mm (2 7/8")
a door weight up to 22.5 kg (50 lbs.) > Required installation height: only 183 mm (7 1/4")
Measurements table for selecting the right model based on cabinet Additional Notes
9 height and door weight including weight of handle. The lever arms are spring loaded – Risk of injury and damage to the
We recommend ordering the stronger fitting model if in doubt. fitting! After mounting the arms, do not press them down in the open
Door Weight Ranges in Pounds position until the counterweight of the door is mounted.
Model Min G Max Min H Max Please use a Pozi Drive #2 bit for all screw installations and adjustment
Hinges and Stays 375 (15") 24 39 37 53 Make sure that the Euro screws which attach the fittings to side panels Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Door Height
features, otherwise damage to the screw head is likely.
57
26
40
350 (14")
42
are completely tight; drawing the fitting tight against the side wall.
22
36
35
50
400 (16")
21
425 (17")
33
47
For tension adjustment feature, we recommend using a cordless driver
34
as these screws are geared very low; be sure to adjust both sides to
44
31
32
450 (18")
20
the same tensioning position.
31
19
29
475 (19")
42
500 (20")
17
525 (21")
26
38
28
550 (22") 18 29 28 40
25
16
26
36
575 (23") 16 25 24 35
600 (24") 15 24 23 33
625 (25") 14 23 22 32
650 (26") 14 22 21 30
FC 9.103A www.hafele.com/us
1/23
