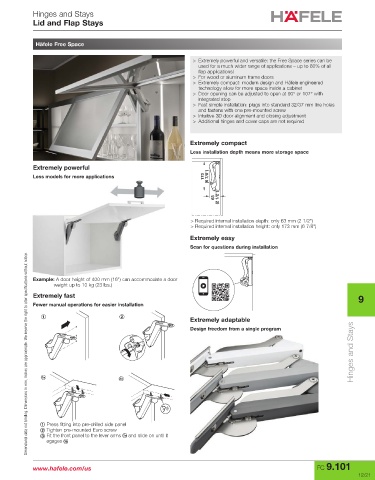

Hinges and Stays
Lid and Flap Stays

Häfele Free Space

> Extremely powerful and versatile: the Free Space series can be
used for a much wider range of applications – up to 80% of all
flap applications!
> For wood or aluminum frame doors
> Extremely compact: modern design and Häfele engineered
technology allow for more space inside a cabinet
> Door opening can be adjusted to open at 90° or 107° with
integrated stop
> Fast simple installation: plugs into standard 32/37 mm line holes
and fastens with one pre-mounted screw
> Intuitive 3D door alignment and closing adjustment
> Additional hinges and cover caps are not required

Extremely compact
Less installation depth means more storage space

Extremely powerful
Less models for more applications 173 (6 7/8")

lb
(2 1/2")
63

> Required internal installation depth: only 63 mm (2 1/2")
> Required internal installation height: only 173 mm (6 7/8")
Extremely easy
Scan for questions during installation
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
173 (6 7/8")

63 (2 1/2") 173 (6 7/8")
Example: A door height of 400 mm (16") can accommodate a door
weight up to 10 kg (23 lbs.)
Extremely fast 63 (2 1/2") 9
Fewer manual operations for easier installation
Extremely adaptable
Hinges and Stays
Design freedom from a single program

Press fitting into pre-drilled side panel
Tighten pre-mounted Euro screw
Fit the front panel to the lever arms and slide on until it
egages
