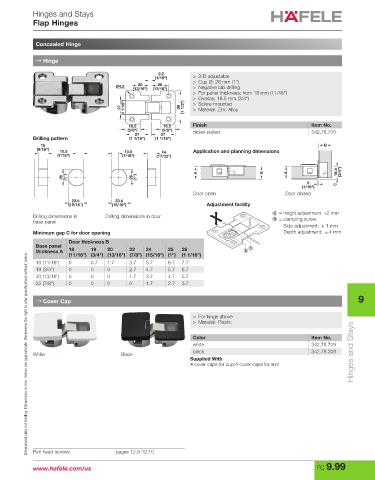

Hinges and Stays
Flap Hinges

Concealed Hinge

15
→ Hinge (9/16") 10.5 10.5 14
(7/16") (7/16") (17/32")
2.2
(1/16") > 3-D adjustable
> Cup Ø: 26 mm (1")
(1")
Ø4.2 20 20 > Negative tab drilling 26 (1")
26
(13/16") (13/16")
> For panel thickness: from 18 mm (11/16")
> Overlay: 18.5 mm (3/4")
(1 1/16") 38 (1 1/2") > Screw mounted
27 > Material: Zinc Alloy (15/16")
23.5
23.5
(15/16")
16.5 16.5 Finish Item No.
(5/8") (5/8") nickel-plated 342.78.700
27 27
Drilling pattern (1 1/16") (1 1/16")
15
(9/16") 10.5 10.5 14 Application and planning dimensions
(7/16") (7/16") (17/32")
18.5 (3/4")
26 (1") 26 (1")
2
(1/16")
Door open Door closed
23.5 23.5
Adjustment facility
(15/16") (15/16") Adjustment facility
= height adjustment: +2 mm
Drilling dimensions in Drilling dimensions in door = clamping screw
base panel
Side adjustment: ± 1 mm
Minimum gap C for door opening Depth adjustment: ± 4 mm
Door thickness B
Base panel
thickness A 18 19 20 22 24 25 26
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(11/16") (3/4") (13/16") (7/8") (15/16") (1")
18 (11/16") 0 0.7 1.7 3.7 5.7 6.7 18.5 (3/4") (1 1/16")
7.7
19 (3/4") 0 0 0 2.7 4.7 5.7 6.7
2
20 (13/16") 0 0 0 1.7 (1/16") 4.7 5.7
3.7
22 (7/8") 0 0 0 0 1.7 2.7 3.7
9
→ Cover Cap
> For hinge above
> Material: Plastic

Color Item No.
white 342.78.709
black 342.78.309
White Black Hinges and Stays
Supplied With
4 cover caps for cup/4 cover caps for arm

Pan head screws pages 12.9-12.10

www.hafele.com/us FC 9.99
