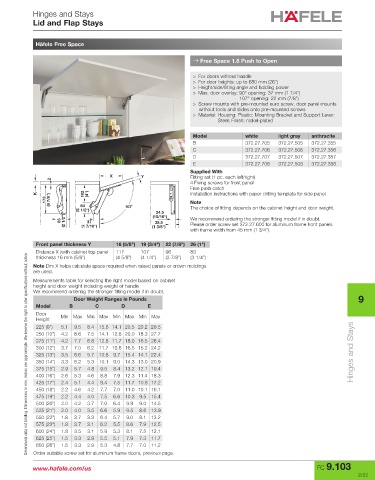

Hinges and Stays
Lid and Flap Stays

Häfele Free Space

→ Free Space 1.8 Push to Open

> For doors without handle
> For door heights: up to 650 mm (26")
> Height/side/tilting angle and holding power
> Max. door overlay: 90° opening: 37 mm (1 1/4")
107° opening: 22 mm (7/8")
> Screw mounts with pre-mounted euro screw, door panel mounts
without tools and slides onto pre-mounted screws
> Material: Housing: Plastic: Mounting Bracket and Support Lever:
Steel; Finish: nickel-plated

Model white light gray anthracite
B 372.27.705 372.27.505 372.27.355
C 372.27.706 372.27.506 372.27.356
D 372.27.707 372.27.507 372.27.357
E 372.27.708 372.27.508 372.27.358
Supplied With
Fitting set (1 pc. each left/right)
4 Fixing screws for front panel
Free push catch
K 102 (4") Installation instructions with paper drilling template for side panel
173 (6 7/8") Note
64
(2 1/2") 107˚ 24.5 The choice of fitting depends on the cabinet height and door weight.
63 (2 1/2") 37 (15/16") We recommend ordering the stronger fitting model if in doubt.
35.5
Please order screw set 372.27.600 for aluminum frame front panels
(1 7/16")
(1 3/8")
with frame width from 45 mm (1 3/4").
Front panel thickness Y 16 (5/8") 19 (3/4") 22 (7/8") 26 (1")
Distance X (with cabinet top panel 117 107 96 83
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
thickness 16 mm (5/8") (4 5/8") (4 1/4") (3 7/8") (3 1/4")
Note Dim X helps calculate space required when raised panels or crown moldings
are used.
Measurements table for selecting the right model based on cabinet
height and door weight including weight of handle
We recommend ordering the stronger fitting model if in doubt.
Door Weight Ranges in Pounds 9
Model B C D E
Door Min Max Min Max Min Max Min Max
Height
225 (9") 5.1 9.5 8.4 15.6 14.1 20.5 20.2 29.5
250 (10") 4.2 8.6 7.5 14.1 12.8 20.0 18.3 27.7
275 (11") 4.2 7.7 6.8 12.8 11.7 18.0 16.5 26.4
300 (12") 3.7 7.0 6.2 11.7 10.6 16.5 15.2 24.2
325 (13") 3.5 6.6 5.7 10.8 9.7 15.4 14.1 22.4 Hinges and Stays
350 (14") 3.3 6.2 5.3 10.1 9.0 14.3 13.0 20.9
375 (15") 2.9 5.7 4.8 9.5 8.4 13.2 12.1 19.4
400 (16") 2.6 5.3 4.6 8.8 7.9 12.3 11.4 18.3
425 (17") 2.4 5.1 4.4 8.4 7.5 11.7 10.8 17.2
450 (18") 2.2 4.6 4.2 7.7 7.0 11.0 10.1 16.1
475 (19") 2.2 4.4 4.0 7.5 6.6 10.3 9.5 15.4
500 (20") 2.0 4.2 3.7 7.0 6.4 9.9 9.0 14.5
525 (21") 2.0 4.0 3.5 6.6 5.9 9.5 8.6 13.9
550 (22") 1.8 3.7 3.3 6.4 5.7 9.0 8.1 13.2
575 (23") 1.8 3.7 3.1 6.2 5.5 8.6 7.9 12.5
600 (24") 1.8 3.5 3.1 5.9 5.3 8.1 7.5 12.1
625 (25") 1.5 3.3 2.9 5.5 5.1 7.9 7.3 11.7
650 (26") 1.5 3.3 2.9 5.3 4.8 7.7 7.0 11.2
Order suitable screw set for aluminum frame doors, previous page.
