Hinges and Stays
Flap Hinges

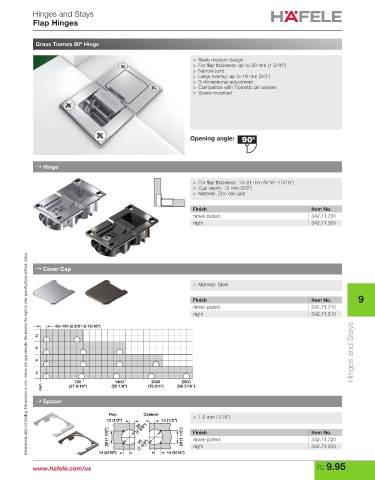

Grass Tiomos 90º Hinge

> Sleek modern design
> For flap thickness: up to 30 mm (1 3/16")
> Narrow joint
> Large overlay: up to 19 mm (3/4")
> 3-dimensional adjustment
> Compatible with Tipmatic pin system
> Screw mounted

Opening angle:

→ Hinge

> For flap thickness: 14–21 mm (9/16"–13/16")
> Cup depth: 12 mm (3/8")
> Material: Zinc die-cast

Finish Item No.
nickel-plated 342.71.700
night 342.71.300

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

→ Cover Cap

> Material: Steel

Finish Item No. 9
nickel-plated 342.71.710
night 342.71.310

Hinges and Stays
60–100 (2 3/8"–3 15/16")
2
3

4

5
700 1400 2000 2500
mm (27 9/16") (55 1/8") (78 3/4") (98 7/16")

→ Spacer

Flap Cabinet > 1.5 mm (1/16")
13 (1/2") (1 3/8") 13 (1/2")
35
29 (1 1/8") 35 29 (1 1/8") Finish Item No.
nickel-plated
342.71.720
14 (9/16") (1 3/8") 14 (9/16") night 342.71.320

www.hafele.com/us FC 9.95
