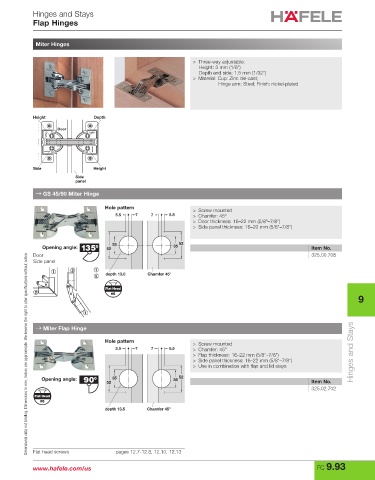

Hinges and Stays
Flap Hinges

Miter Hinges

> Three-way adjustable:
Height: 3 mm (1/8")
Depth and side: 1.5 mm (1/32")
> Material: Cup: Zinc die-cast;
Hinge arm: Steel; Finish: nickel-plated

Height Depth

Door

Side Height
Side
panel
→ GS 45/90 Miter Hinge

Hole pattern > Screw mounted
5.5 7 7 5.5 > Chamfer: 45°
> Door thickness: 16–22 mm (5/8"–7/8")
> Side panel thickness: 16–20 mm (5/8"–7/8")

Opening angle: 52 35 35 52 Item No.
Door 325.00.708
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Side panel
depth 13.5 Chamfer 45°

Flat Head
#6
9

→ Miter Flap Hinge

Hole pattern > Screw mounted
5.5 7 7 5.5 > Chamfer: 45°
> Flap thickness: 16–22 mm (5/8"–7/8") Hinges and Stays
> Side panel thickness: 16–22 mm (5/8"–7/8")
> Use in combination with flap and lid stays

Opening angle: 35 35 52
52 Item No.
325.02.702
Flat Head
#6
depth 13.5 Chamfer 45°

Flat head screws pages 12.7-12.8, 12.10, 12.13
