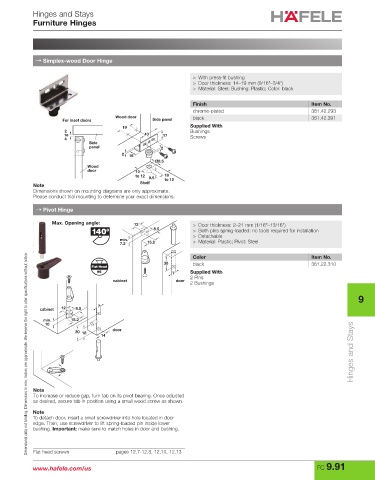

Hinges and Stays
Furniture Hinges

→ Simplex-wood Door Hinge

> With press-fit bushing
> Door thickness: 14–19 mm (9/16"–3/4")
> Material: Steel; Bushing: Plastic; Color: black

Finish Item No.
chrome-plated 361.42.293
Wood door black 361.42.391
For inset doors Side panel
19 Supplied With
2 Bushings
to 40 17 Screws
4
Side
panel 2
2 16
Ø8.5
Wood
door 10
to 12 9.5 10
to 12
Note Shelf
Dimensions shown on mounting diagrams are only approximate.
Please conduct trial mounting to determine your exact dimensions.
→ Pivot Hinge

Max. Opening angle: 12 > Door thickness: 2–21 mm (1/16"–13/16")
8.5 > Both pins spring-loaded: no tools required for installation
> Detachable
min. > Material: Plastic; Pivot: Steel
7.2 15.2
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Color Item No.
30 black 361.22.310
Flat Head
#5 7 Supplied With
2 Pins
cabinet door
2 Bushings
9
cabinet 12 8.5 7

min. 15.2
Hinges and Stays
10
door
30 18
14

Note
To increase or reduce gap, turn tab on its pivot bearing. Once adjusted
as desired, secure tab in position using a small wood screw as shown.
Note
To detach door, insert a small screwdriver into hole located in door
edge. Then, use screwdriver to lift spring-loaded pin inside lower
bushing. Important: make sure to match holes in door and bushing.

Flat head screws pages 12.7-12.8, 12.10, 12.13

www.hafele.com/us FC 9.91
