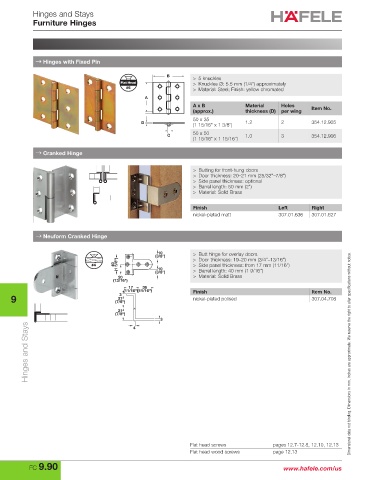

Hinges and Stays
Furniture Hinges

→ Hinges with Fixed Pin

B
> 5 knuckles
Flat Head > Knuckles Ø: 5.5 mm (1/4") approximately
#5 > Material: Steel; Finish: yellow chromated
A
A x B Material Holes
(approx.) thickness (D) per wing Item No.
50 x 35
D 1.2 2 354.12.905
(1 15/16" x 1 3/8")
50 x 50
C 1.0 3 354.12.906
(1 15/16" x 1 15/16")
→ Cranked Hinge

> Butting for front-hung doors
> Door thickness: 20–21 mm (25/32"–7/8")
> Side panel thickness: optional
> Barrel length: 50 mm (2")
> Material: Solid Brass

Finish Left Right
nickel-plated matt 307.01.636 307.01.627

→ Neuform Cranked Hinge

10 10 > Butt hinge for overlay doors
(3/8") (3/8") > Door thickness: 19–20 mm (3/4"–13/16")
(1 5/8") #4 (1 5/8")
40 40 > Side panel thickness: from 17 mm (11/16")
10
10
(3/8") (3/8") > Barrel length: 40 mm (1 9/16")
20 20 > Material: Solid Brass
(13/16") (13/16")
14 36 17 36
(9/16") (1 7/16") (11/16") (11/16") Finish Item No.
3
9 (11/16") (7/8") nickel-plated polised 307.04.708
3
17
21
17
(11/16") 21
3 (7/8")
3
4 4
Hinges and Stays Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Flat head screws pages 12.7-12.8, 12.10, 12.13
Flat head wood screws page 12.13
FC 9.90 www.hafele.com/us
