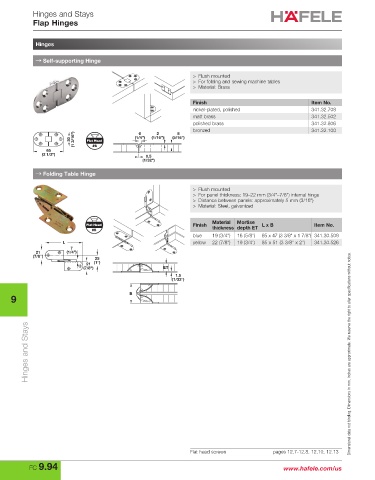

Hinges and Stays
Flap Hinges

Hinges

→ Self-supporting Hinge

> Flush mounted
> For folding and sewing machine tables
> Material: Brass

Finish Item No.
nickel-plated, polished 341.32.708
matt brass 341.32.502
polished brass 341.32.806
bronzed 341.32.100
6
2
8
(1 3/16") (1/4") (1/16") (5/16")
30 Flat Head
65 #6
(2 1/2") 0.5
(1/32")
→ Folding Table Hinge

> Flush mounted
> For panel thickness: 19–22 mm (3/4"–7/8") internal hinge
> Distance between panels: approximately 5 mm (3/16")
> Material: Steel, galvanized

Material Mortise
Flat Head Finish thickness depth ET L x B Item No.
#5
blue 19 (3/4") 16 (5/8") 85 x 47 (3 3/8" x 1 7/8") 341.30.509
L yellow 22 (7/8") 19 (3/4') 85 x 51 (3 3/8" x 2") 341.30.526
7
21 (1/4")
(7/8") 25
21 (1")
(7/8") ET
1.5
(1/32")

9 B

Hinges and Stays Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Flat head screws pages 12.7-12.8, 12.10, 12.13
FC 9.94 www.hafele.com/us
