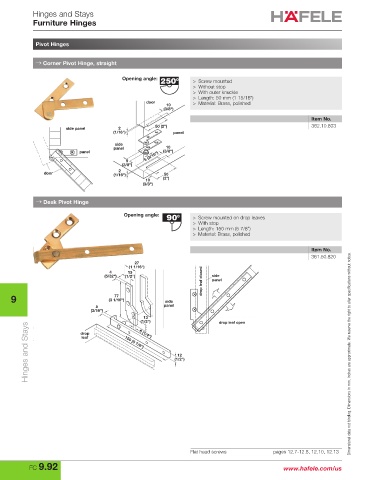

P. 910
Hinges and Stays
Furniture Hinges
Pivot Hinges
→ Corner Pivot Hinge, straight
Opening angle: > Screw mounted
> Without stop
> With outer knuckle
> Length: 50 mm (1 15/16")
door > Material: Brass, polished
10
(3/8")
Item No.
side panel 2 50 (2") 362.10.803
(1/16") panel
side
panel 10
panel 5 (3/16") (3/8")
9
(3/8")
2
door (1/16") 50
10 (2")
(3/8")
→ Desk Pivot Hinge
Opening angle:
> Screw mounted on drop leaves
> With stop
> Length: 150 mm (5 7/8")
> Material: Brass, polished
Item No.
361.50.820
27
(1 1/16")
drop leaf closed panel
4 13
(5/32") (1/2") side
9 (3 1/16") side
77
5 panel
(3/16")
13
(1/2") drop leaf open
Hinges and Stays 150 (5 7/8") (1/2") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
drop
6 (1/4")
leaf
12
Flat head screws pages 12.7-12.8, 12.10, 12.13
