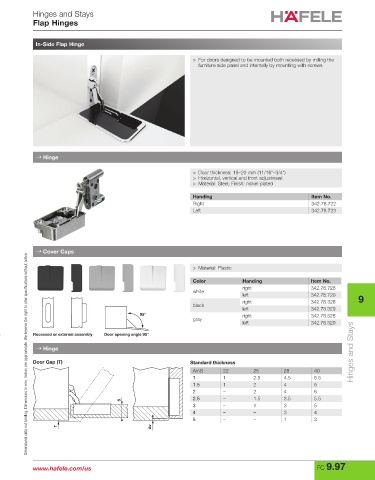

Hinges and Stays
Flap Hinges

In-Side Flap Hinge

> For doors designed to be mounted both recessed by milling the
furniture side panel and internally by mounting with screws

→ Hinge

> Door thickness: 18–20 mm (11/16"–3/4")
> Horizontal, vertical and front adjustment
> Material: Steel; Finish: nickel-plated

Handing Item No.
Right 342.78.722
Left 342.78.723

→ Cover Caps
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Material: Plastic

Color Handing Item No.
right 342.78.728
white
left 342.78.729
right 342.78.328 9
black
left 342.78.329
95° 95° right 342.78.528
gray
left 342.78.529
Recessed or external assembly Recessed or external assembly Door opening angle 95° Door opening angle 95°
→ Hinge Hinges and Stays

Door Gap (T) Standard thickness
Door Gap (T)
Av\S 22 Av S 25 22 25 28 28 40 30
1 1 1 2.5 1 4 4.5 7 6.5 9
1.5 1 2 4 6
2 – 1.5 2 1 4 4 6.5 6 8.5
2.5 – 2 1.5 1 4 3.5 6.5 5.5 8.5
S
3 – 2,5 1 – 3 3 6 5 8
4 – – 3 4
5 – 3 – – 2.5 1 5.5 3 7.5
T Av 4 – 2 5 7
5 - 1 4 6
