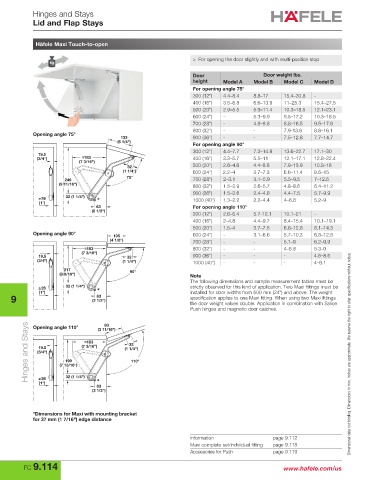

Hinges and Stays
Lid and Flap Stays

Häfele Maxi Touch-to-open

> For opening the door slightly and with multi-position stop

Door Door weight lbs.
height Model A Model B Model C Model D
For opening angle 75°
300 (12") 4.4–8.4 8.8–17 15.4–30.8 -
400 (16") 3.5–6.8 6.6–13.9 11–25.3 15.4–27.5
500 (20") 2.9–5.5 5.9–11.4 10.3–18.5 12.1–23.1
600 (24") - 5.3–9.9 9.5–17.2 10.3–18.5
700 (28") - 4.8–8.8 8.8–16.5 9.5–17.6
800 (32") - - 7.9-13.6 8.6–16.1
Opening angle 75°
133 900 (36") - - 7.5–12.8 7.7–14.7
(5 1/4")
For opening angle 90°
300 (12") 4.4–7.7 7.3–14.8 13.6–22.7 17.1–30
19.5
(3/4") 183 400 (16") 3.3–5.7 5.5–11 12.1–17.1 12.8–22.4
(7 3/16")
32 500 (20") 2.6–4.6 4.4–8.8 7.9–13.9 10.3–18
(1 1/4") 600 (24") 2.2–4 3.7–7.3 6.6–11.4 8.6–15
75°
246 700 (28") 2–3.1 3.1–5.9 5.5–9.5 7–12.6
(9 11/16") 800 (32") 1.5–2.9 2.6–5.7 4.8–8.6 6.4–11.2
900 (36") 1.5–2.6 2.4–4.8 4.4–7.5 5.7–9.9
≥26 32 (1 1/4") 1000 (40") 1.3–2.2 2.2–4.4 4–6.8 5.2–9
(1")
63 For opening angle 110°
(2 1/2")
200 (12") 2.6–6.4 5.7-12.1 10.1–21 -
400 (16") 2–4.8 4.4–9.7 8.4–15.4 10.1–19.1
500 (20") 1.5–4 3.7–7.5 6.8–12.8 8.1–14.3
Opening angle 90° 105 600 (24") - 3.1–6.6 5.7–10.3 6.8–12.8
(4 1/8") 700 (28") - - 5.1–9 6.2–9.9
183 800 (32") - - 4–6.8 5.3–9
(7 3/16")
19.5 32 900 (36") - - - 4.6–8.6
(3/4") (1 1/4") 1000 (40") - - - 4–8.1
217 90°
(8 9/16") Note
The following dimensions and sample measurement tables must be
≥26 32 (1 1/4") strictly observed for this kind of application. Two Maxi fittings must be
(1") installed for door widths from 600 mm (24") and above. The weight
9 (2 1/2") specification applies to one Maxi fitting. When using two Maxi fittings
63
the door weight values double. Application in combination with Salice
Push hinges and magnetic door catches.

Hinges and Stays (3/4") (7 13/16") (7 3/16") (1 1/4") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
93
Opening angle 110°
(3 11/16")
183
32
19.5
199
110°
32 (1 1/4")
≥26
(1")
63
(2 1/2")

*Dimensions for Maxi with mounting bracket
for 37 mm (1 7/16") edge distance

Information page 9.112
Maxi complete set/individual fitting page 9.118
Accessories for Push page 9.119
FC 9.114 www.hafele.com/us
