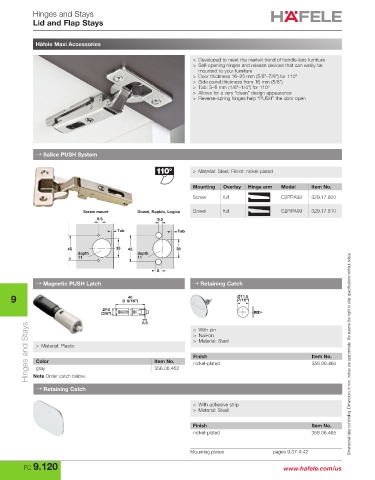

Page 940 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Hinges and Stays
Lid and Flap Stays

Häfele Maxi Accessories

> Developed to meet the market trend of handle-less furniture
> Self-opening hinges and release devices that can easily be
mounted to your furniture
> Door thickness 16–23 mm (5/8"–7/8") for 110º
> Side panel thickness from 16 mm (5/8")
> Tab: 3–6 mm (1/8"–1/4") for 110º
> Allows for a very “clean” design appearance
> Reverse-spring hinges help “PUSH” the door open

→ Salice PUSH System

> Material: Steel; Finish: nickel-plated

Mounting Overlay Hinge arm Model Item No.
Screw full C2PPA99 329.17.800

Screw mount Dowel, Rapido, Logica Dowel full C2RPA99 329.17.810
9.5 9.5
Tab Tab

45 35 45 35
depth depth
11 11

8
→ Magnetic PUSH Latch → Retaining Catch

9 (1 9/16") (7/16") (1 9/16") (7/16")
Ø11.5
Ø11.5
40
40
Ø10 Ø10
(3/8") 0.5 (3/8") > With pin 0.5
Hinges and Stays > Material: Plastic Item No. > Nail-on Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Material: Steel

Finish
Color
nickel-plated
356.06.464
356.06.462
gray
Note Order catch below.
→ Retaining Catch

> With adhesive strip
> Material: Steel

Finish Item No.
nickel-plated 356.06.465

Mounting plates pages 9.37-9.42
