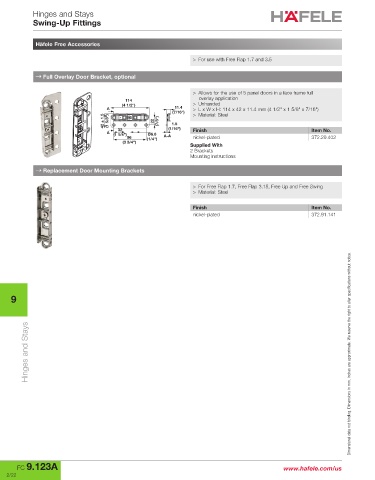

P. 944
Hinges and Stays
Swing-Up Fittings
Häfele Free Accessories
> For use with Free Flap 1.7 and 3.5
→ Full Overlay Door Bracket, optional
> Allows for the use of 5 panel doors in a face frame full
overlay application
114
(4 1/2") > Unhanded
A 11.4 > L x W x H: 114 x 42 x 11.4 mm (4 1/2" x 1 5/8" x 7/16")
(7/16") > Material: Steel
42 ± 1.5 (1 5/8") 22 (7/8") 1.5
32
A (1 1/4") Ø6.6 (1/16") Finish Item No.
96 (1/4") A-A nickel-plated 372.29.402
(3 3/4")
Supplied With
2 Brackets
Mounting instructions
→ Replacement Door Mounting Brackets
> For Free Flap 1.7, Free Flap 3.15, Free Up and Free Swing
> Material: Steel
Finish Item No.
nickel-plated 372.91.141
9
Hinges and Stays Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
FC 9.123A www.hafele.com/us
2/22
