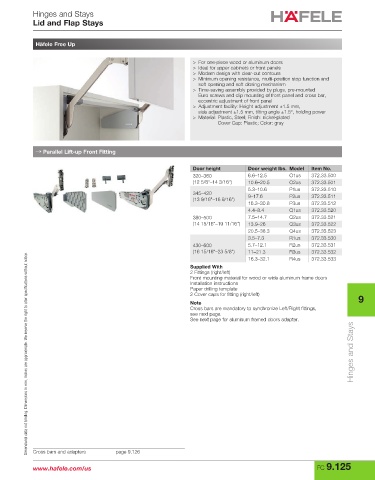

Hinges and Stays
Lid and Flap Stays

Häfele Free Up

> For one-piece wood or aluminum doors
> Ideal for upper cabinets or front panels
> Modern design with clear-cut contours
> Minimum opening resistance, multi-position stop function and
soft opening and soft closing mechanism
> Time-saving assembly provided by plugs, pre-mounted
Euro screws and clip mounting of front panel and cross bar,
eccentric adjustment of front panel
> Adjustment facility: Height adjustment ±1.5 mm,
side adjustment ±1.5 mm, tilting angle ±1.5°, holding power
> Material: Plastic, Steel; Finish: nickel-plated
Cover Cap: Plastic; Color: gray

→ Parallel Lift-up Front Fitting

Door height Door weight lbs. Model Item No.
320–360 6.6–12.5 O1us 372.33.500
(12 5/8"–14 3/16") 10.6–20.5 O2us 372.33.501
5.3–10.6 P1us 372.33.510
345–420 9–17.6 P2us 372.33.511
(13 9/16"–16 9/16")
16.3–30.8 P3us 372.33.512
4.4–8.4 Q1us 372.33.520
380–500 7.5–14.7 Q2us 372.33.521
(14 15/16"–19 11/16") 13.9–26 Q3us 372.33.522
20.5–38.3 Q4us 372.33.523
3.5–7.3 R1us 372.33.530
430–600 5.7–12.1 R2us 372.33.531
(16 15/16"–23 5/8") 11–21.3 R3us 372.33.532
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
16.3–32.1 R4us 372.33.533
Supplied With
2 Fittings (right/left)
Front mounting material for wood or wide aluminum frame doors
Installation instructions
Paper drilling template
2 Cover caps for fitting (right/left) 9
Note
Cross bars are mandatory to synchronize Left/Right fittings,
see next page.
See next page for aluminum framed doors adapter.
Hinges and Stays

Cross bars and adapters page 9.126
