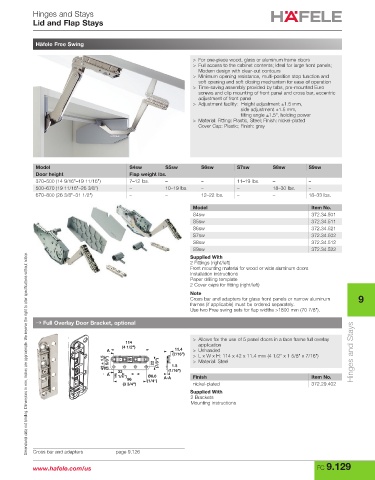

Hinges and Stays
Lid and Flap Stays

Häfele Free Swing

> For one-piece wood, glass or aluminum frame doors
> Full access to the cabinet contents; Ideal for large front panels;
Modern design with clear-cut contours
> Minimum opening resistance, multi-position stop function and
soft opening and soft closing mechanism for ease of operation
> Time-saving assembly provided by tabs, pre-mounted Euro
screws and clip mounting of front panel and cross bar, eccentric
adjustment of front panel
> Adjustment facility: Height adjustment ±1.5 mm,
side adjustment ±1.5 mm,
tilting angle ±1.5°, holding power
> Material: Fitting: Plastic, Steel; Finish: nickel-plated
Cover Cap: Plastic; Finish: gray

Model S4sw S5sw S6sw S7sw S8sw S9sw
Door height Flap weight lbs.
370–500 (14 9/16"–19 11/16") 7–12 lbs. – – 11–19 lbs. – –
500–670 (19 11/16"–26 3/8") – 10–19 lbs. – – 18–30 lbs. –
670–800 (26 3/8"–31 1/2") – – 12–22 lbs. – – 18–33 lbs.

Model Item No.
S4sw 372.34.501
S5sw 372.34.511
S6sw 372.34.521
S7sw 372.34.502
S8sw 372.34.512
S9sw 372.34.522
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Supplied With
2 Fittings (right/left)
Front mounting material for wood or wide aluminum doors
Installation instructions
Paper drilling template
2 Cover caps for fitting (right/left)
Note
Cross bar and adapters for glass front panels or narrow aluminum 9
frames (if applicable) must be ordered separately.
Use two Free swing sets for flap widths >1800 mm (70 7/8").

→ Full Overlay Door Bracket, optional

> Allows for the use of 5 panel doors in a face frame full overlay
114 application
(4 1/2")
A 11.4 > Unhanded
(7/16") > L x W x H: 114 x 42 x 11.4 mm (4 1/2" x 1 5/8" x 7/16") Hinges and Stays
42 ± 1.5 (1 5/8") 22 (7/8") 1.5 > Material: Steel
32
A (1 1/4") Ø6.6 (1/16") Finish Item No.
96 (1/4") A-A
(3 3/4") nickel-plated 372.29.402
Supplied With
2 Brackets
Mounting instructions

Cross bar and adapters page 9.126

www.hafele.com/us FC 9.129
