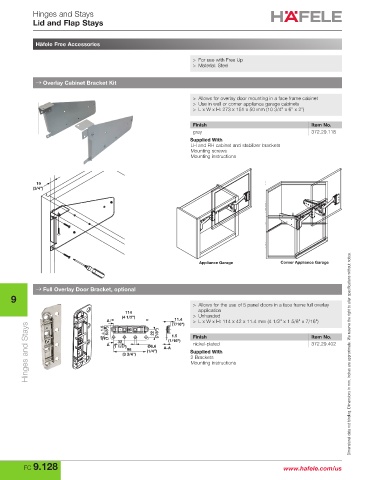

P. 950
Hinges and Stays
Lid and Flap Stays
Häfele Free Accessories
> For use with Free Up
> Material: Steel
→ Overlay Cabinet Bracket Kit
> Allows for overlay door mounting in a face frame cabinet
> Use in wall or corner appliance garage cabinets
> L x W x H: 273 x 151 x 50 mm (10 3/4" x 6" x 2")
Finish Item No.
gray 372.29.118
Supplied With
LH and RH cabinet and stabilizer brackets
Mounting screws
Mounting instructions
19
(3/4”)
Appliance Garage Corner Appliance Garage
→ Full Overlay Door Bracket, optional
9
> Allows for the use of 5 panel doors in a face frame full overlay
application
114
(4 1/2") > Unhanded
A (1 5/8") 22 (7/8") 1.5 11.4 > L x W x H: 114 x 42 x 11.4 mm (4 1/2" x 1 5/8" x 7/16")
(7/16")
Hinges and Stays A (1 1/4") 96 (1/4") A-A (1/16") Supplied With 372.29.402 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
42 ± 1.5
Finish
Item No.
32
nickel-plated
Ø6.6
(3 3/4")
2 Brackets
Mounting instructions
FC 9.128 www.hafele.com/us
