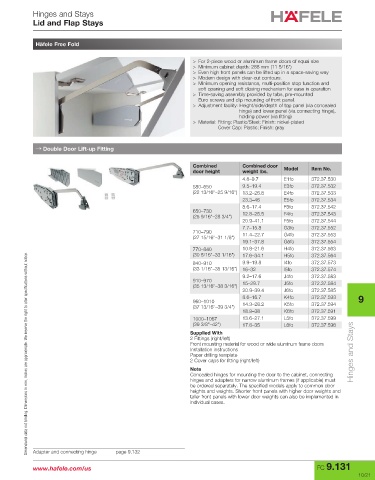

Hinges and Stays
Lid and Flap Stays

Häfele Free Fold

> For 2-piece wood or aluminum frame doors of equal size
> Minimum cabinet depth: 288 mm (11 5/16")
> Even high front panels can be lifted up in a space-saving way
> Modern design with clear-cut contours.
> Minimum opening resistance, multi-position stop function and
soft opening and soft closing mechanism for ease in operation
> Time-saving assembly provided by tabs, pre-mounted
Euro screws and clip mounting of front panel.
> Adjustment facility: Height/side/depth of top panel (via concealed
hinge) and lower panel (via connecting hinge),
holding power (via fitting)
> Material: Fitting: Plastic/Steel; Finish: nickel-plated
Cover Cap: Plastic; Finish: gray

→ Double Door Lift-up Fitting

Combined Combined door Model Item No.
door height weight lbs.
4.8–9.7 E1fo 372.37.530
580–650 9.5–19.4 E3fo 372.37.532
(22 13/16"–25 9/16") 13.2–26.8 E4fo 372.37.533
23.3–46 E5fo 372.37.534
8.6–17.4 F3fo 372.37.542
650–730
(25 9/16"–28 3/4") 12.8–25.5 F4fo 372.37.543
20.9–41.1 F5fo 372.37.544
7.7–15.8 G3fo 372.37.552
710–790
(27 15/16"–31 1/8") 11.4–22.7 G4fo 372.37.553
19.1–37.8 G5fo 372.37.554
770–840 10.8–21.6 H4fo 372.37.563
(30 5/16"–33 1/16") 17.6–34.1 H5fo 372.37.564
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
840–910 9.9–19.8 I4fo 372.37.573
(33 1/16"–35 13/16") 16–32 I5fo 372.37.574
9.2–17.6 J4fo 372.37.583
910–970 15–29.7 J5fo 372.37.584
(35 13/16"–38 3/16")
20.9–39.4 J6fo 372.37.585
8.6–16.7 K4fo 372.37.593 9
960–1010 14.3–28.2 K5fo 372.37.594
(37 13/16"–39 3/4")
18.9–38 K6fo 372.37.591
1000–1067 13.6–27.1 L5fo 372.37.599
(39 3/8"–42") 17.8–35 L6fo 372.37.596
Supplied With
2 Fittings (right/left)
Front mounting material for wood or wide aluminum frame doors
Installation instructions
Paper drilling template Hinges and Stays
2 Cover caps for fitting (right/left)
Note
Concealed hinges for mounting the door to the cabinet, connecting
hinges and adapters for narrow aluminum frames (if applicable) must
be ordered separately. The specified models apply to common door
heights and weights. Shorter front panels with higher door weights and
taller front panels with lower door weights can also be implemented in
individual cases.

Adapter and connecting hinge page 9.132
