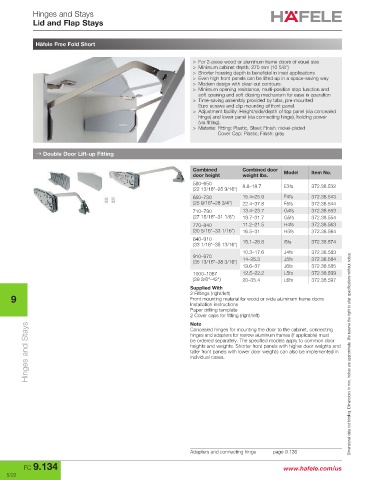

Hinges and Stays
Lid and Flap Stays

Häfele Free Fold Short

> For 2-piece wood or aluminum frame doors of equal size
> Minimum cabinet depth: 270 mm (10 5/8")
> Shorter housing depth is beneficial in inset applications
> Even high front panels can be lifted up in a space-saving way
> Modern design with clear-cut contours.
> Minimum opening resistance, multi-position stop function and
soft opening and soft closing mechanism for ease in operation
> Time-saving assembly provided by tabs, pre-mounted
Euro screws and clip mounting of front panel.
> Adjustment facility: Height/side/depth of top panel (via concealed
hinge) and lower panel (via connecting hinge), holding power
(via fitting).
> Material: Fitting: Plastic, Steel; Finish: nickel-plated
Cover Cap: Plastic; Finish: gray

→ Double Door Lift-up Fitting

Combined Combined door Model Item No.
door height weight lbs.
580–650
(22 13/16"–25 9/16") 8.8–18.7 E3fs 372.38.532
650–730 15.4–25.9 F4fs 372.38.543
(25 9/16"–28 3/4") 22.4–37.8 F5fs 372.38.544
710–790 13.4–23.7 G4fs 372.38.553
(27 15/16"–31 1/8") 18.7–31.7 G5fs 372.38.554
770–840 11.2–21.5 H4fs 372.38.563
(30 5/16"–33 1/16") 16.5–31 H5fs 372.38.564
840–910 15.1–26.8 I5fs 372.38.574
(33 1/16"–35 13/16")
10.3–17.6 J4fs 372.38.583
910–970
(35 13/16"–38 3/16") 14–25.3 J5fs 372.38.584
19.6–37 J6fs 372.38.585
1000–1067 12.5–22.2 L5fs 372.38.599
(39 3/8"–42") 20–35.4 L6fs 372.38.597
Supplied With
2 Fittings (right/left)
9 Front mounting material for wood or wide aluminum frame doors
Installation instructions
Paper drilling template
2 Cover caps for fitting (right/left)
Note
Hinges and Stays hinges and adapters for narrow aluminum frames (if applicable) must Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Concealed hinges for mounting the door to the cabinet, connecting
be ordered separately. The specified models apply to common door
heights and weights. Shorter front panels with higher door weights and
taller front panels with lower door weights can also be implemented in
individual cases.

Adapters and connecting hinge page 9.136
