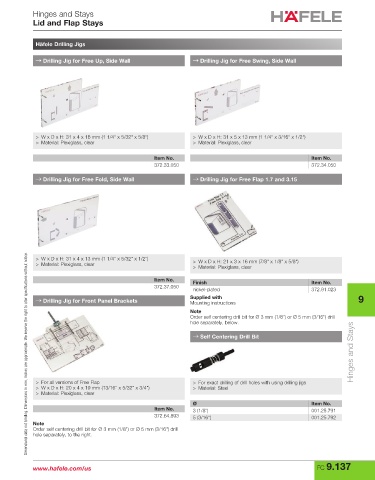

Hinges and Stays
Lid and Flap Stays

Häfele Drilling Jigs

→ Drilling Jig for Free Up, Side Wall → Drilling Jig for Free Swing, Side Wall

> W x D x H: 31 x 4 x 16 mm (1 1/4" x 5/32" x 5/8") > W x D x H: 31 x 5 x 13 mm (1 1/4" x 3/16" x 1/2")
> Material: Plexiglass, clear > Material: Plexiglass, clear

Item No. Item No.
372.33.050 372.34.050

→ Drilling Jig for Free Fold, Side Wall → Drilling Jig for Free Flap 1.7 and 3.15

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> W x D x H: 31 x 4 x 13 mm (1 1/4" x 5/32" x 1/2") > W x D x H: 21 x 3 x 16 mm (7/8" x 1/8" x 5/8")
> Material: Plexiglass, clear > Material: Plexiglass, clear

Item No. Finish Item No.
372.37.050
nickel-plated 372.91.023
Supplied with 9
→ Drilling Jig for Front Panel Brackets Mounting instructions
Note
Order self centering drill bit for Ø 3 mm (1/8") or Ø 5 mm (3/16") drill
hole separately, below.
Hinges and Stays
→ Self Centering Drill Bit

> For all versions of Free Flap > For exact drilling of drill holes with using drilling jigs
> W x D x H: 20 x 4 x 19 mm (13/16" x 5/32" x 3/4") > Material: Steel
> Material: Plexiglass, clear
Ø Item No.
Item No. 3 (1/8") 001.25.791
372.64.893 5 (3/16") 001.25.792
Note
Order self centering drill bit for Ø 3 mm (1/8") or Ø 5 mm (3/16") drill
hole separately, to the right.
