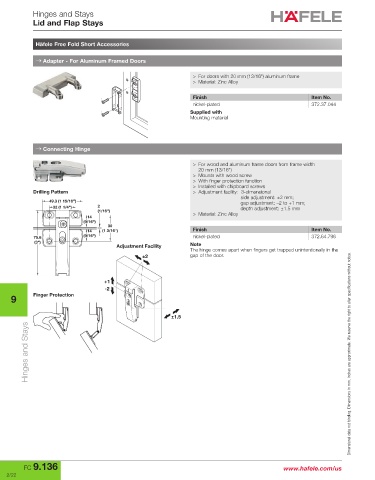

Hinges and Stays
Lid and Flap Stays

Häfele Free Fold Short Accessories

→ Adapter - For Aluminum Framed Doors

> For doors with 20 mm (13/16") aluminum frame
> Material: Zinc Alloy

Finish Item No.
nickel-plated 372.37.044
Supplied with
Mounting material

→ Connecting Hinge

> For wood and aluminum frame doors from frame width
20 mm (13/16")
> Mounts with wood screw
> With finger protection function
> Installed with chipboard screws
Drilling Pattern > Adjustment facility: 3-dimensional
side adjustment: ±2 mm;
49.3 (1 15/16") gap adjustment: –2 to +1 mm;
32 (1 1/4") 2 depth adjustment: ±1.5 mm
(1/16")
14 > Material: Zinc Alloy
(9/16")
30
14 (1 3/16") Finish Item No.
75.6 (9/16") nickel-plated 372.64.796
(3") Note
Adjustment Facility
The hinge comes apart when fingers get trapped unintentionally in the
±2 gap of the door.

+1
-2
9 Finger Protection

±1.5
Hinges and Stays Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

FC 9.136 www.hafele.com/us
2/22
