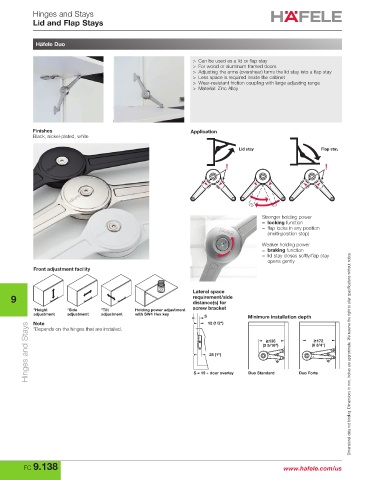

P. 960
Hinges and Stays
Lid and Flap Stays
Häfele Duo
> Can be used as a lid or flap stay
> For wood or aluminum framed doors
> Adjusting the arms (overshear) turns the lid stay into a flap stay
> Less space is required inside the cabinet
> Wear-resistant friction coupling with large adjusting range
> Material: Zinc Alloy
Finishes Application
Black, nickel-plated, white
Lid stay Flap stay
Stronger holding power
= locking function
= flap locks in any position
(multi-position stop)
Weaker holding power
= braking function
= lid stay closes softly/flap stay
opens gently
Front adjustment facility
Lateral space
9 requirement/side
distance(s) for
*Height *Side *Tilt Holding power adjustment screw bracket
adjustment adjustment adjustment with SW4 Hex key S 12 (1/2") Minimum installation depth
Note
Hinges and Stays S = 12 + door overlay Duo Standard Duo Forte Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
*Depends on the hinges that are installed.
≥135
≥172
(5 5/16")
(6 3/4")
25 (1")
FC 9.138 www.hafele.com/us
