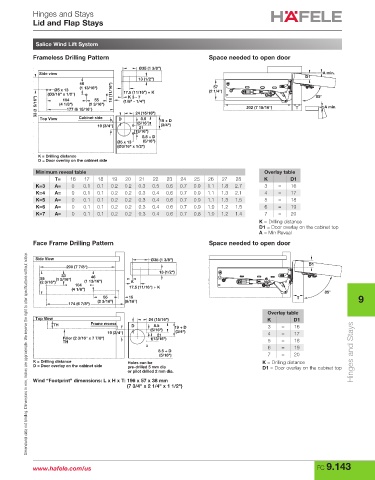

Page 965 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Hinges and Stays
Lid and Flap Stays

Salice Wind Lift System

Frameless Drilling Pattern Space needed to open door
Ø35 (1 3/8")
Side view A min.
13 (1/2") D1
46
57
Ø5 x 13 (1 13/16") (2 1/4")
(Ø3/16" x 1/2") 55 18 (11/16") 17.5 (11/16") + K 85°
K 3 - 7
33 (1 5/16") (4 1/8") (2 3/16") (1/8" - 1/4") 202 (7 15/16") T A min.
104
177 (6 15/16")
Top View Cabinet side D 24 (15/16") 19 + D
8.5
(5/16")
19 (3/4") 21 (3/4")
(13/16")
8.5 + D
Ø5 x 13 (5/16")
(Ø3/16" x 1/2")
K = Drilling distance
D = Door overlay on the cabinet side
Minimum reveal table Overlay table
T= 16 17 18 19 20 21 22 23 24 25 26 27 28 K D1
K=3 A= 0 0.1 0.1 0.2 0.2 0.3 0.5 0.6 0.7 0.9 1.1 1.8 2.7 3 = 16
K=4 A= 0 0.1 0.1 0.2 0.2 0.3 0.4 0.6 0.7 0.9 1.1 1.3 2.1 4 = 17
K=5 A= 0 0.1 0.1 0.2 0.2 0.3 0.4 0.6 0.7 0.9 1.1 1.3 1.5 5 = 18
K=6 A= 0 0.1 0.1 0.2 0.2 0.3 0.4 0.6 0.7 0.9 1.0 1.2 1.5 6 = 19
K=7 A= 0 0.1 0.1 0.2 0.2 0.3 0.4 0.6 0.7 0.8 1.0 1.2 1.4 7 = 20
K = Drilling distance
D1 = Door overlay on the cabinet top
A = Min Reveal
Face Frame Drilling Pattern Space needed to open door
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Side View Ø35 (1 3/8")
D1
200 (7 7/8")
13 (1/2")
33
55 (1 5/16") 46
(2 3/16") (1 13/16") K
104
(4 1/8") 17.5 (11/16") + K
85°
55 15 T 9
(2 3/16") (9/16")
174 (6 7/8")
Overlay table
Top View 24 (15/16") K D1
TH Frame recess D 8.5 19 + D 3 = 16
(5/16")
19 (3/4") 21 (3/4") 4 = 17
Filler (2 3/16" x 7 7/8") (13/16")
TH 5 = 18
6 = 19
8.5 + D Hinges and Stays
(5/16") 7 = 20
K = Drilling distance Holes can be K = Drilling distance
D = Door overlay on the cabinet side pre-drilled 5 mm dia D1 = Door overlay on the cabinet top
or pilot drilled 2 mm dia.
Wind “Footprint” dimensions: L x H x T: 196 x 57 x 38 mm
(7 3/4" x 2 1/4" x 1 1/2")
