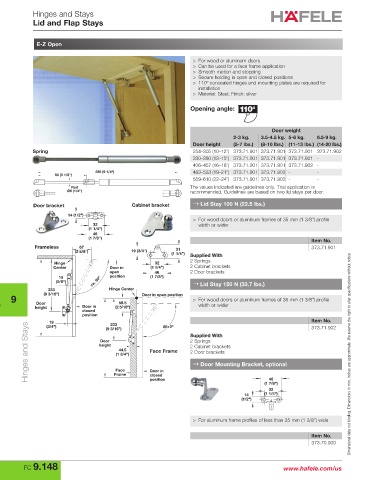

Page 970 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Hinges and Stays
Lid and Flap Stays

E-Z Open

> For wood or aluminum doors
> Can be used for a face frame application
> Smooth motion and stopping
> Secure holding in open and closed positions
> 110º concealed hinges and mounting plates are required for
installation
> Material: Steel; Finish: silver

Opening angle:

Door weight
2-3 kg. 3.5-4.5 kg. 5-6 kg. 6.5-9 kg.
Door height (5-7 lbs.) (8-10 lbs.) (11-13 lbs.) (14-20 lbs.)
Spring 254–305 (10–12") 373.71.901 373.71.901 373.71.901 373.71.902
330–380 (13–15") 373.71.901 373.71.901 373.71.901 -
406–457 (16–18") 373.71.901 373.71.901 373.71.902 -
235 (9 1/4") 483–533 (19–21") 373.71.901 373.71.902 - -
80 (3 1/8")
559–610 (22–24") 373.71.901 373.71.902 - -
Rod The values indicated are guidelines only. Trial application is
Ø6 (1/4") recommended. Guidelines are based on two lid stays per door.
Door bracket Cabinet bracket → Lid Stay 100 N (22.5 lbs.)
14 (1/2")
> For wood doors or aluminum frames of 35 mm (1 3/8") profile
32 width or wider
(1 1/4")
46
(1 7/8") Item No.
Frameless 67 Hinge Center 373.71.901
31
(2 5/8") 19 (3/4") (1 1/4") Supplied With
Door in open position
58.5 2 Springs
Hinge 32 (2 5/16")
Center Door in (1 1/4") 2 Cabinet brackets
open 46 2 Door brackets
15 position (1 7/8")
(5/8") ca. 90º 233 → Lid Stay 150 N (33.7 lbs.)
88±2º
67 233 Hinge Center (9 3/16")
(2 5/8")
9 (9 3/16") Door in open position > For wood doors or aluminum frames of 35 mm (1 3/8") profile
Door
58.5
Hinge Door Door in (2 5/16") height width or wider
44.5
Center height Door in closed (1 3/4")
open position
15 position Item No.
19
(5/8") ca. 90º (3/4") 233 88±2º Face 373.71.902
Hinges and Stays
233 (9 3/16") Frame Door in
closed
(9 3/16") Door Supplied With
position
2 Springs
Door height 2 Cabinet brackets
height Door in 44.5 Face Frame
closed (1 3/4") 2 Door brackets Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
position
19 → Door Mounting Bracket, optional
(3/4") Frame Door in
Face
closed
46
position
(1 7/8")
32
14 (1 1/4")
(1/2")
> For aluminum frame profiles of less than 35 mm (1 3/8") wide
Item No.
373.70.900
FC 9.148 www.hafele.com/us
