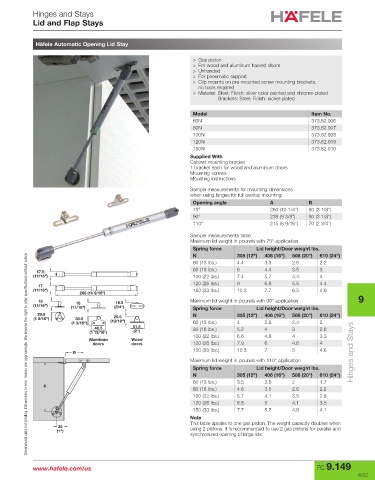

Hinges and Stays
Lid and Flap Stays

Häfele Automatic Opening Lid Stay

> Gas piston
> For wood and aluminum framed doors
> Unhanded
> For pneumatic support
> Clip mounts on pre-mounted screw mounting brackets,
no tools required
> Material: Steel; Finish: silver color painted and chrome-plated
Brackets: Steel; Finish: nickel-plated

Model Item No.
60N 373.82.906
80N 373.82.907
100N 373.82.908
120N 373.82.909
150N 373.82.910
Supplied With
Cabinet mounting bracket
1 bracket each for wood and aluminum doors
Mounting screws
Mounting instructions
Sample measurements for mounting dimensions
when using hinges for full overlay mounting.
Opening angle A B
75° 260 (10 1/4") 80 (3 1/8")
90° 238 (9 3/8") 80 (3 1/8")
110° 215 (8 9/16") 70 (2 3/4")
Sample measurements table
Maximum lid weight in pounds with 75° application
Spring force Lid height/Door weight lbs.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
N 305 (12") 406 (16") 508 (20") 610 (24")
60 (13 lbs.) 4.4 3.3 2.6 2.2
80 (18 lbs.) 6 4.4 3.5 3
17.5
(11/16") 100 (22 lbs.) 7.4 5.7 4.4 4
120 (26 lbs.) 9 6.8 5.5 4.4
17
(11/16") 150 (33 lbs.) 10.3 7.7 6.3 4.6
268 (10 9/16")
18 18 18.5 Maximum lid weight in pounds with 90° application 9
(11/16") (11/16") (3/4") Spring force Lid height/Door weight lbs.
29.5 N 305 (12") 406 (16") 508 (20") 610 (24")
(1 3/16") 30.5 20.5
(1 3/16") (13/16") 60 (13 lbs.) 4 2.8 2.4 2
46.5 51.5 80 (18 lbs.) 5.2 4 3 2.6
(1 13/16") (2")
100 (22 lbs.) 6.6 4.8 4 3.3
Aluminum Wood
doors doors 120 (26 lbs.) 7.9 6 4.6 4
150 (33 lbs.) 10.3 7 5 4.6
B Hinges and Stays
Maximum lid weight in pounds with 110° application
Spring force Lid height/Door weight lbs.
N 305 (12") 406 (16") 508 (20") 610 (24")
60 (13 lbs.) 3.5 2.6 2 1.7
A
80 (18 lbs.) 4.6 3.5 2.6 2.2
100 (22 lbs.) 5.7 4.1 3.5 2.8
120 (26 lbs.) 6.8 5 4.1 3.5
150 (33 lbs.) 7.7 5.7 4.8 4.1
Note
This table applies to one gas piston. The weight capacity doubles when
25 using 2 pistons. It is recommended to use 2 gas pistons for parallel and
(1")
synchronized opening of large lids.
