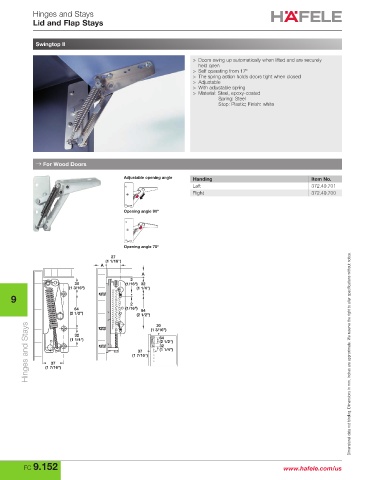

P. 974
Hinges and Stays
Lid and Flap Stays
Swingtop II
> Doors swing up automatically when lifted and are securely
held open
> Self operating from 17º
> The spring action holds doors tight when closed
> Adjustable
> With adjustable spring
> Material: Steel, epoxy-coated
Spring: Steel
Stop: Plastic; Finish: white
→ For Wood Doors
Adjustable opening angle Handing Item No.
Left 372.49.701
Right 372.49.700
Opening angle 90º
Opening angle 75º
27
(1 1/16")
A
A
2
30 (1/16") 32
(1 3/16") (1 1/4")
9
2
64 (1/16") 64
(2 1/2") (2 1/2") (1 3/16")
Hinges and Stays (1 7/16") (1 1/4") (1 7/16") 64 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
30
32
(2 1/2")
32
(1 1/4")
37
37
FC 9.152 www.hafele.com/us
