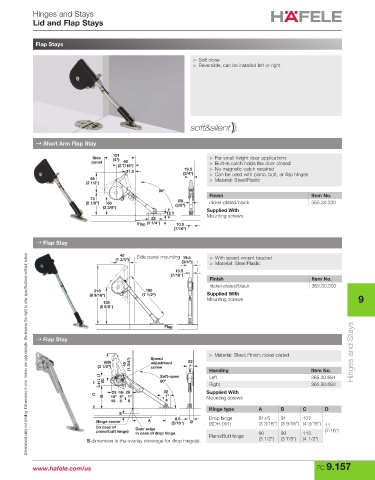

Hinges and Stays
Lid and Flap Stays

Flap Stays

> Soft close
> Reversible, can be installed left or right

→ Short Arm Flap Stay

101
Side (4") > For small height door applications
panel 62 > Built-in catch holds the door closed
(2 7/16")
19.5
31.5 (3/4") > No magnetic catch required
> Can be used with piano, butt, or flap hinges
65 > Material: Steel/Plastic
(2 1/2")
90º
Finish Item No.
73
Ø9
(2 7/8") 60 (3/8") nickel-plated/black 365.30.330
(2 3/8") Supplied With
12 Mounting screws
32
Flap (1 1/4") 4 10.5
(7/16")
→ Flap Stay
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
45 Side panel mounting 19.5
(1 3/4") (3/4") > With speed-mount bracket
> Material: Steel/Plastic
10.5
(7/16")
Finish Item No.
nickel-plated/black 365.30.300
218 190
(8 9/16") (7 1/2") Supplied With 9
Mounting screws
135
(5 5/8")

Flap
→ Flap Stay

> Material: Steel; Finish: nickel-plated Hinges and Stays
(89) Speed 22
adjustment
(3 1/2") 45 (1 3/4") screw 7" Handing Item No.
8
Soft-open Left 365.30.681
90º
Right 365.30.680
32
(1 1/4")
C 23 16 29 32 Supplied With
B 15" 5" 1" 1 1" Mounting screws
16 8 1 8 4
Hinge type A B C D
S
8.5
Hinge center A (5/16") D Drop hinge 81+S 91 107
(3 3/16") (3 9/16") (4 3/16")
(SDH-001)
(in case of Door edge 11
piano/butt hinge) in case of drop hinge Piano/Butt hinge 90 99 115 (7/16")
S dimension is the overlay coverage for drop hinge(s). (3 1/2") (3 7/8") (4 1/2")
www.hafele.com/us FC 9.157
