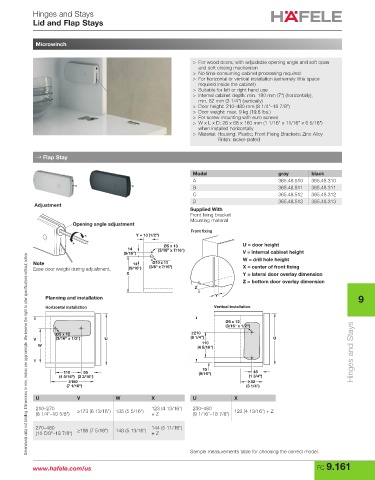

Hinges and Stays
Lid and Flap Stays

Microwinch

> For wood doors; with adjustable opening angle and soft open
and soft closing mechanism
> No time-consuming cabinet processing required
> For horizontal or vertical installation (extremely little space
required inside the cabinet)
> Suitable for left or right hand use
> Internal cabinet depth: min. 180 mm (7") (horizontally),
min. 82 mm (3 1/4") (vertically)
> Door height: 210–480 mm (8 1/4"–18 7/8")
> Door weight: max. 9 kg (19.8 lbs.)
> For screw mounting with euro screws
> W x L x D: 26 x 68 x 160 mm (1 1/16" x 11/16" x 6 5/16")
when installed horizontally
> Material: Housing: Plastic; Front Fixing Brackets: Zinc Alloy
Finish: nickel-plated

→ Flap Stay

Model gray black
A 365.48.510 365.48.310
B 365.48.511 365.48.311
C 365.48.512 365.48.312
D 365.48.513 365.48.313
Adjustment
Supplied With
Front fixing bracket
Mounting material
Opening angle adjustment
Front fixing
Y + 13 (1/2")
Ø5 x 13 U = door height
14 (3/16" x 7/16")
(9/16") V = internal cabinet height
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
W = drill hole height
Note 14 Ø10 x 11
Ease door weight during adjustment. (9/16") (3/8" x 7/16") X = center of front fixing
X Y = lateral door overlay dimension
Z = bottom door overlay dimension
Z
Planning and installation Y 9
Horizontal installation Vertical installation

Ø5 x 12
(3/16" x 1/2")
Ø5 x 12 210
V (3/16" x 1/2") U (8 1/4") U
110
W (4 5/16") Hinges and Stays

15
110 55 (9/16") 45
(4 5/16") (2 3/16") (1 3/4")
180 82
(7 1/16") (3 1/4")
U V W X U X

210–270 123 (4 13/16") 230–480
(8 1/4"–10 5/8") ≥173 (6 13/16") 135 (5 5/16") + Z (9 1/16"–18 7/8") 123 (4 13/16") + Z

270–480 ≥186 (7 5/16") 148 (5 13/16") 144 (5 11/16")
(10 5/8"–18 7/8") + Z

Sample measurements table for choosing the correct model.

www.hafele.com/us FC 9.161
