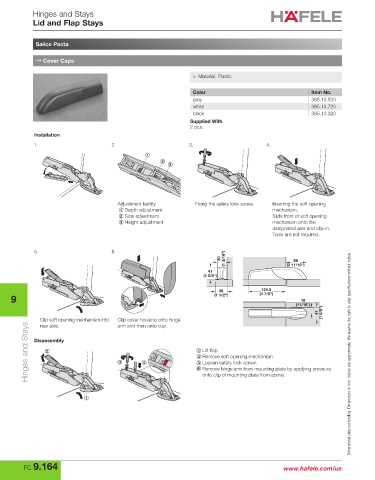

Hinges and Stays
Lid and Flap Stays

Salice Pacta

→ Cover Caps

> Material: Plastic

Color Item No.
gray 365.13.520
white 365.13.720
black 365.13.320
Supplied With
2 pcs.
Installation
. 1 . 2 . 3 . 4

Adjustment facility Fixing the safety lock screw. Inserting the soft opening
Depth adjustment mechanism.
Side adjustment Slide front of soft opening
Height adjustment mechanism onto the
designated axle and clip-in.
Tools are not required.

5. 6.
30 (1 3/16") (2 11/16")
68
41
(1 5/8")
124.5
38 (4 7/8")
9 (1 1/2") 18
(11/16")
41 (1 5/8")
Clip soft opening mechanism into Clip cover housing onto hinge
Hinges and Stays Disassembly 4 Remove hinge arm from mounting plate by applying pressure Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
rear axle.
arm and then onto cup.

Lift flap
Remove soft opening mechanism.
Loosen safety lock screw.

onto clip of mounting plate from above.
