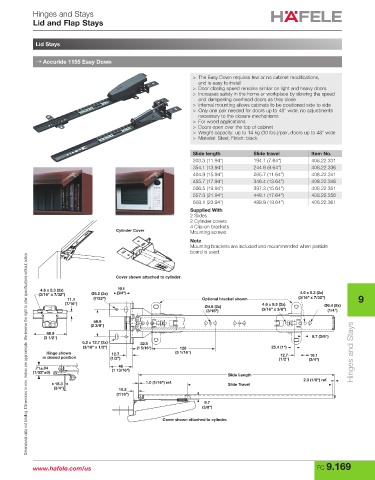

Hinges and Stays
Lid and Flap Stays

Lid Stays

→ Accuride 1155 Easy Down

> The Easy Down requires few or no cabinet modifications,
and is easy to install
> Door closing speed remains similar on light and heavy doors
> Increases safety in the home or workplace by slowing the speed
and dampening overhead doors as they close
> Internal mounting allows cabinets to be positioned side to side
> Only one pair needed for doors up to 48" wide; no adjustments
necessary to the closure mechanisms
> For wood applications
> Doors open over the top of cabinet
> Weight capacity: up to 14 kg (30 lbs.)/pair, doors up to 48" wide
> Material: Steel; Finish: black

Slide length Slide travel Item No.
303.3 (11.94") 194.1 (7.64") 408.22.331
354.1 (13.94") 244.9 (9.64") 408.22.336
404.9 (15.94") 295.7 (11.64") 408.22.341
455.7 (17.94") 346.4 (13.64") 408.22.346
506.5 (19.94") 397.3 (15.64") 408.22.351
557.3 (21.94") 448.1 (17.64") 408.22.356
608.1 (23.94") 498.9 (19.64") 408.22.361
Supplied With
2 Slides
2 Cylinder covers
4 Clip-on brackets
Cylinder Cover Mounting screws
Note
Mounting brackets are included and recommended when particle
board is used.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Cover shown attached to cylinder.

4.6 x 5.3 (2x) 19.1
(3/16" x 7/32") Ø5.2 (2x) (3/4") 4.6 x 5.3 (2x)
11.1 (7/32") Optional bracket shown (3/16" x 7/32") 9
(7/16") 4.6 x 9.5 (2x)
Ø4.6 (2x) Ø6.4 (8x)
(3/16") (3/16" x 3/8") (1/4")
59.9
(2 3/8")
88.9
(3 1/2") 9.7 (3/8")
5.2 x 12.7 (2x) 32.8
(3/16" x 1/2") (1 5/16") 128 25.4 (1")
Hinge shown 12.7 (5 1/16") 12.7 Hinges and Stays
19.1
in closed position (1/2") (1/2") (3/4")
46
.71±.04 (1 13/16")
(1/32"±0)
Slide Length
2.3 (1/8") ref.
18.3 1.0 (1/16") ref. Slide Travel
(3/4") 10.2
(7/16")
9.7
(3/8")
Cover shown attached to cylinder.

www.hafele.com/us FC 9.169
