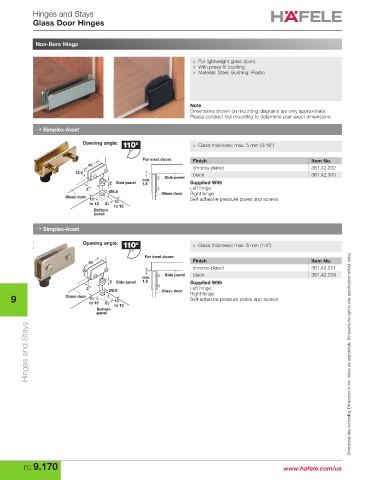

Hinges and Stays
Glass Door Hinges

Non-Bore Hinge

> For lightweight glass doors
> With press-fit bushing
> Material: Steel; Bushing: Plastic

Note
Dimensions shown on mounting diagrams are only approximate.
Please conduct trial mounting to determine your exact dimensions.

→ Simplex-Inset
Opening angle: > Glass thickness: max. 5 mm (3/16")

For inset doors Finish Item No.
40
chrome-plated 361.42.202
13.5 black 361.42.300
Side panel
min.
2 Side panel 1.5 Supplied With
2 Left hinge
Ø8.8 Glass door Right hinge
Glass door 10 Self-adhesive pressure plates and screws
to 12 8 10
to 12
Bottom
panel
→ Simplex-Inset

Opening angle: > Glass thickness: max. 6 mm (1/4")

For inset doors
40 Finish Item No.
chrome-plated 361.42.211
20
min. Side panel black 361.42.319
2 Side panel 1.5 Supplied With
2 Ø8.8 Glass door Left hinge
9 Glass door 10 8 10 Right hinge
Self-adhesive pressure plates and screws
to 12
Bottom to 12
panel
Hinges and Stays Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

FC 9.170 www.hafele.com/us
