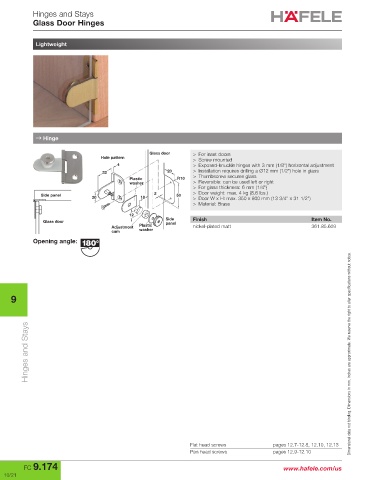

Hinges and Stays
Glass Door Hinges
Lightweight
→ Hinge
Glass door > For inset doors
Hole pattern
> Screw mounted
4 > Exposed-knuckle hinges with 3 mm (1/8") horizontal adjustment
32 20 > Installation requires drilling a Ø12 mm (1/2") hole in glass
Plastic R10 > Thumbscrew secures glass
washer > Reversible: can be used left or right
> For glass thickness: 6 mm (1/4")
Side panel 20 18 2 50 > Door weight: max. 4 kg (8.8 lbs.)
> Door W x H: max. 350 x 800 mm (13 3/4" x 31 1/2")
> Material: Brass
12
Glass door Side Finish Item No.
panel
Adjustment Plastic nickel-plated matt 361.85.609
cam washer
Opening angle:
9
Hinges and Stays Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Flat head screws pages 12.7-12.8, 12.10, 12.13
Pan head screws pages 12.9-12.10
