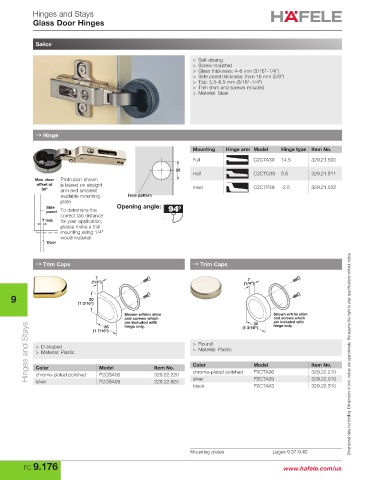

Hinges and Stays
Glass Door Hinges

Salice

> Self-closing
> Screw mounted
> Glass thickness: 4–6 mm (3/16"–1/4")
> Side panel thickness: from 16 mm (5/8")
> Tab: 5.5–6.5 mm (3/16"–1/4")
> Trim shim and screws included
> Material: Steel

→ Hinge

Mounting Hinge arm Model Hinge type Item No.
Full C2C7A39 14.5 329.21.500
26
Half C2C7G39 5.5 329.21.511
Max. door Protrusion shown
offset at is based on straight
90º arm and smallest Inset C2C7P39 -2.5 329.21.532
available mounting Hole pattern
plate.
Side Opening angle:
panel To determine the
correct tab distance
7 mm for your application,
please make a trial
mounting using 1/4"
wood material.
Door

→ Trim Caps
With straight → Trim Caps
arm
VP = 0 mm
7 7
(1/4") (1/4")
9 (1 3/16")
30

Shown w/trim shim Shown w/trim shim
and screws which (1 3/16") and screws which
are included with
are included with
30
Hinges and Stays > D-shaped Model Item No. > Round Model Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
hinge only.
hinge only.
36
(1 7/16")
> Material: Plastic
> Material: Plastic
Color
Color
chrome-plated polished
P2CBA06
chrome-plated polished
329.22.220
329.22.910
P2CTA09
silver
P2CBA09
silver
329.22.920
329.22.310
black P2CTA06 329.22.210
P2CTAX3
Mounting plates pages 9.37-9.42
FC 9.176 www.hafele.com/us
