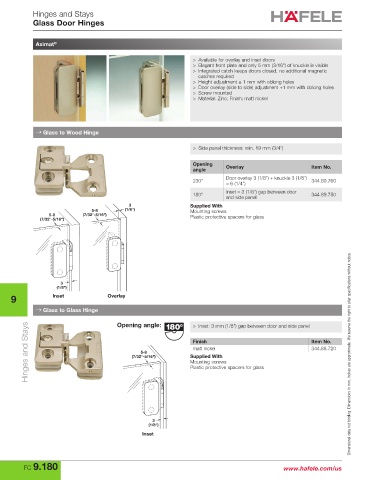

Hinges and Stays
Glass Door Hinges

Aximat ®

> Available for overlay and inset doors
> Elegant front plate and only 5 mm (3/16") of knuckle is visible
> Integrated catch keeps doors closed, no additional magnetic
catches required
> Height adjustment ± 1 mm with oblong holes
> Door overlay (side to side) adjustment +1 mm with oblong holes
> Screw mounted
> Material: Zinc; Finish: matt nickel

→ Glass to Wood Hinge

> Side panel thickness: min. 19 mm (3/4")

Opening Overlay Item No.
angle
Door overlay 3 (1/8") + knuckle 3 (1/8")
230° = 6 (1/4") 344.89.760
180° Inset = 3 (1/8") gap between door 344.89.750
and side panel
3 Supplied With
5-8 (1/8") Mounting screws
5-8 (7/32"-5/16") Plastic protective spacers for glass
(7/32"-5/16")

3
(1/8")
9 Inset Overlay
→ Glass to Glass Hinge Opening angle: > Inset: 3 mm (1/8") gap between door and side panel

Hinges and Stays (7/32"-5/16") (7/32"-5/16") (1/8") Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Finish
3
344.88.720
5-8
matt nickel
5-8
Supplied With
Mounting screws
Plastic protective spacers for glass

3
(1/8")
Inset

FC 9.180 www.hafele.com/us
