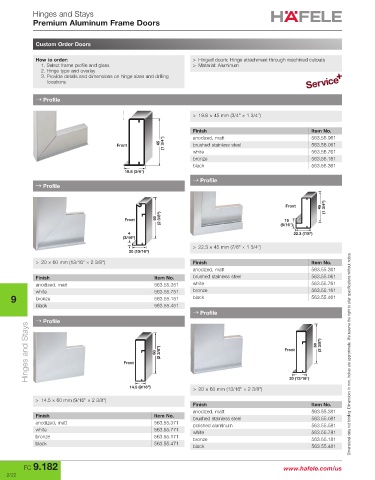

Hinges and Stays
Premium Aluminum Frame Doors

Custom Order Doors

How to order: > Hinged doors: Hinge attachment through machined cutouts
1. Select frame profile and glass > Material: Aluminum
2. Hinge type and overlay
3. Provide details and dimensions on hinge sizes and drilling
locations

→ Profile

> 19.8 × 45 mm (3/4" × 1 3/4")

Finish Item No.
(1 3/4") 45 anodized, matt 563.56.961
Front brushed stainless steel 563.56.061
white 563.56.761
bronze 563.56.161
black 563.56.361
19.8 (3/4")
→ Profile
→ Profile

Front 45 (1 3/4")
(2 3/8") 60
Front (9/16")
15
4 22.3 (7/8")
(3/16")
> 22.3 × 45 mm (7/8" × 1 3/4")
20 (13/16")
> 20 × 60 mm (13/16" × 2 3/8") Finish Item No.
anodized, matt 563.55.361
Finish Item No. brushed stainless steel 563.55.061
anodized, matt 563.55.351 white 563.55.761
white 563.55.751 bronze 563.55.161
9 bronze 563.55.151 black 563.55.461
black 563.55.451
→ Profile
→ Profile
Hinges and Stays Front 60 (2 3/8") Front 60 (2 3/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

14.5 (9/16") > 20 × 60 mm (13/16" × 2 3/8") 20 (13/16")

> 14.5 × 60 mm (9/16" × 2 3/8")
Finish Item No.
anodized, matt 563.55.381
Finish Item No. brushed stainless steel 563.55.081
anodized, matt 563.55.371 polished aluminum 563.55.581
white 563.55.771 white 563.55.781
bronze 563.55.171 bronze 563.55.181
black 563.55.471
black 563.55.481
