Hinges and Stays

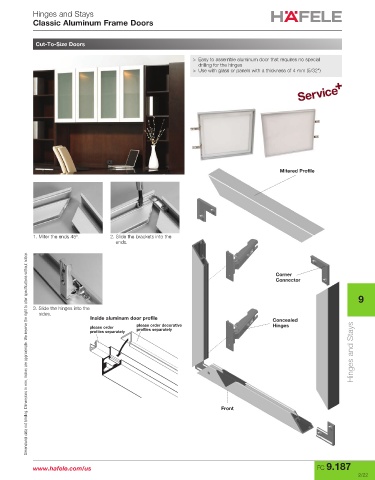

            Classic Aluminum Frame Doors


             Cut-To-Size Doors


                                                                >  Easy to assemble aluminum door that requires no special
                                                                  drilling for the hinges
                                                                >  Use with glass or panels with a thickness of 4 mm (5/32")


















                                                                                            Mitered Profile












            1. Miter the ends 45º.   2. Slide the brackets into the
                                       ends.
          Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.


                                                                                           Corner
                                                                                           Connector


                                                                                                                      9
            3. Slide the hinges into the
              sides.
                               Inside aluminum door profile                               Concealed
                                                                                                                    Hinges and Stays
                                              please order decorative                     Hinges
                              please order
                              profiles separately  profiles separately












                                                                         Front
