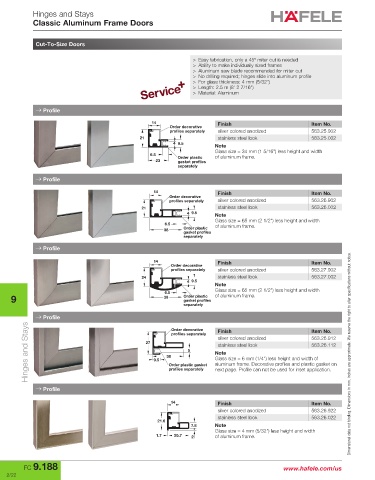

P. 1010

Hinges and Stays
Classic Aluminum Frame Doors

Cut-To-Size Doors

> Easy fabrication, only a 45º miter cut is needed
> Ability to make individually sized frames
> Aluminum saw blade recommended for miter cut
> No drilling required; hinges slide into aluminum profile
> For glass thickness: 4 mm (5/32")
> Length: 2.5 m (8' 2 7/16")
> Material: Aluminum

→ Profile
14 Finish Item No.
Order decorative
proﬁles separately silver colored anodized 563.25.902
21 stainless steel look 563.25.002
4 9.5
Note
Glass size = 34 mm (1 5/16") less height and width
6.5 Order plastic of aluminum frame.
23 gasket proﬁles
separately
→ Profile

14 Finish Item No.
Order decorative
proﬁles separately silver colored anodized 563.26.902
21 stainless steel look 563.26.002
4 9.5 Note
Glass size = 65 mm (2 1/2") less height and width
6.5 of aluminum frame.
38 Order plastic
gasket proﬁles
separately
→ Profile

14 Finish Item No.
Order decorative
proﬁles separately silver colored anodized 563.27.902
24 stainless steel look 563.27.002
4 9.5
Note
Glass size = 65 mm (2 1/2") less height and width
6.5 of aluminum frame.
9 38 Order plastic
gasket proﬁles
separately
→ Profile Order decorative Finish Item No.
Hinges and Stays 27 9.5 38 Order plastic gasket Note 563.26.912 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
proﬁles separately
silver colored anodized
563.26.112
stainless steel look
5
Glass size = 6 mm (1/4") less height and width of
aluminum frame. Decorative profiles and plastic gasket on
proﬁles separately
next page. Profile can not be used for inset application.

→ Profile

14 Finish Item No.
silver colored anodized 563.26.922
stainless steel look 563.26.022
21.6
7.8 Note
Glass size = 4 mm (5/32") less height and width
1.7 25.7 2 of aluminum frame.

FC 9.188 www.hafele.com/us
2/22
