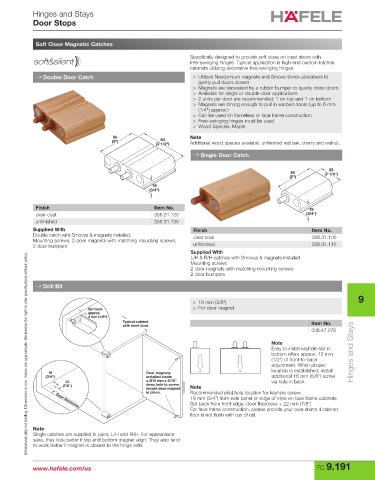

Hinges and Stays
Door Stops

Soft Close Magnetic Catches

Specifically designed to provide soft close on inset doors with
free-swinging hinges. Typical application is high-end custom kitchen
cabinets utilizing decorative free-swinging hinges.
→ Double Door Catch > Utilizes Neodymium magnets and Smove shock absorbers to
gently pull doors closed
> Magnets are separated by a rubber bumper to quietly close doors
> Available for single or double-door applications
> 2 units per door are recommended; 1 on top and 1 on bottom
> Magnets are strong enough to pull in warped doors (up to 6 mm
(1/4") approx.)
> Can be used on frameless or face frame construction
> Free-swinging hinges must be used
> Wood Species: Maple

50 Note
(2") 64 Additional wood species available: unfinished red oak, cherry and walnut.
(2 1/2")
→ Single Door Catch

32
50 (1 1/4")
(2")
19
(3/4")

Finish Item No. 19
clear coat 356.31.120 (3/4")
unfinished 356.31.130
Supplied With Finish Item No.
Double catch with Smoves & magnets installed, clear coat 356.31.100
Mounting screws, 2 door magnets with matching mounting screws,
2 door bumpers unfinished 356.31.110
Supplied With
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
L/H & R/H catches with Smoves & magnets installed
Mounting screws
2 door magnets with matching mounting screws
2 door bumpers
→ Drill Bit
9
> 10 mm (3/8")
Set back > For door magnet
approx.
3 mm (1/8")
Typical cabinet Item No.
with inset door
006.47.076
Note
Easy to install keyhole slot in
bottom offers approx. 12 mm Hinges and Stays
(1/2") of front-to-back
adjustment. When proper
location is established, install
19 Door magnets
(3/4") installed inside additional 16 mm (5/8") screw
22 a Ø10 mm x 5/16" via hole in back.
(7/8") deep hole to screw Note
mount door magnet
in place. Recommended pilot hole location for keyhole screw:
19 mm (3/4") from side panel or edge of style on face frame cabinets
Set back from front edge; door thickness + 22 mm (7/8")
Door thickness
For face frame construction, please provide your own shims if cabinet
floor is not flush with top of rail.
Note
Single catches are supplied in pairs; L/H and R/H. For appearance
sake, they look better if top and bottom magnet align. They also tend
to work better if magnet is closest to the hinge side.

www.hafele.com/us FC 9.191
